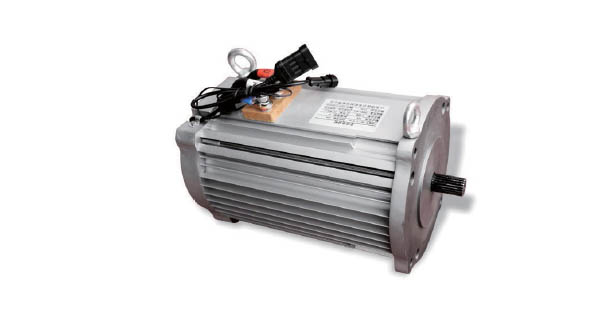

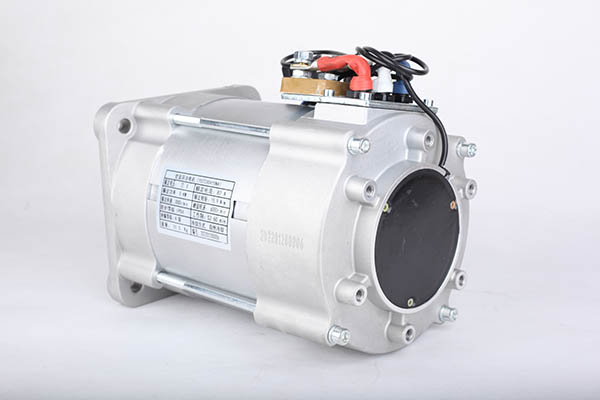

Umbane weforklift motor AC asynchronous motor ehambayo ukuphakamisa imoto 5kw motor Umfanekiso ofakiweyo

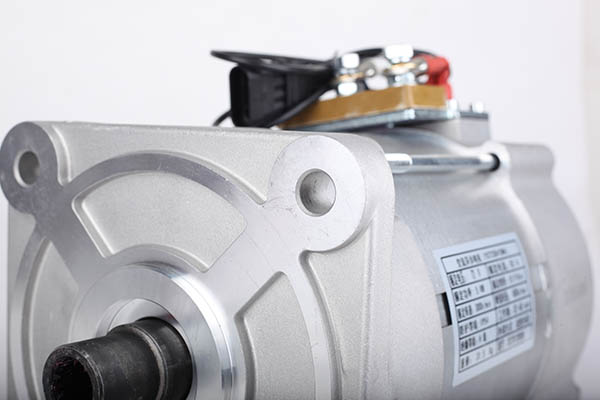

Umbane weforklift motor AC asynchronous motor ehambayo ephakamisa imotor 5kw motor

Inkcazelo emfutshane:

Ubunzima bephakheji: 35.0 kg
Ubunzima beyunithi: 35.0 kg
Ubungakanani bomthamo wemveliso: 41.0 cm * 30.0 cm * 30.0 cm

Le motor yimoto ehambelanayo yabenzi beforklift, inqanaba lesithathu le-AC motor asynchronous, isethi yeentlobo ezimbini, i-5kw kunye ne-6.5kw, ilungele i-1.5t 2t i-forklift yombane, esetyenziselwa ukuphakamisa nokuhamba, ukuba kuyimfuneko, ungathenga epheleleyo. iseti.

Thumela i-imeyile kuthi

Iinkcukacha zeMveliso

Iithegi zeMveliso

Imvelaphi	IsiXeko saseZibo, eTshayina	I-Insulation	H	Inqanaba loKhuseleko	IP56
Lungiselela	eyamkelekileyo	Ukusebenza kakuhle	Ie 3	Uphawu	Xinda Motor
Uhlobo lweMoto	Inqanaba lesithathu le-asynchronous motor	Umzekelo No.	XQY5-72-H9-B	Rated Power	5(kW)
Ilinganisiwe Vol.	48/60V/72V(V)	Isantya esiphezulu	3000(rpm)	Isicelo	iimoto zabahambi, iilori, iiveni, iiforklift

IParameter yeMveliso

Iwaranti	Iinyanga ezi-3-1 unyaka
Indawo yeMvelaphi	eShandong, eTshayina
Igama lebrand	Xinda Motor
Inombolo yoMzekelo	XQY5-72-H9-B
Uhlobo	I-Asynchronous Motor
Isigaba	Inqanaba lesithathu
Khusela Uphawu	Ubungqina bokuthontsiza
Umbane we-AC	72V
Ukusebenza kakuhle	Ie 3
amandla alinganisiwe	5KW
Amandla aphezulu	12.5KW
Umbane olinganisiweyo	72V
Itorque ekalisiweyo (Nm)	15.9
Isantya esilinganiselwe	3000r/min
Isantya esiphezulu	6000r/min
Inkqubo yokusebenza	S2:60
Iklasi ye-Insulation	H
Inqanaba lokhuseleko	IP56
Supply Ability	40000 iSeti/iSeti ngeNyanga nganye

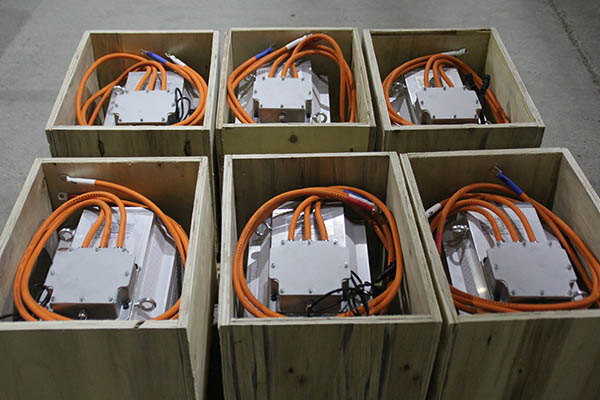

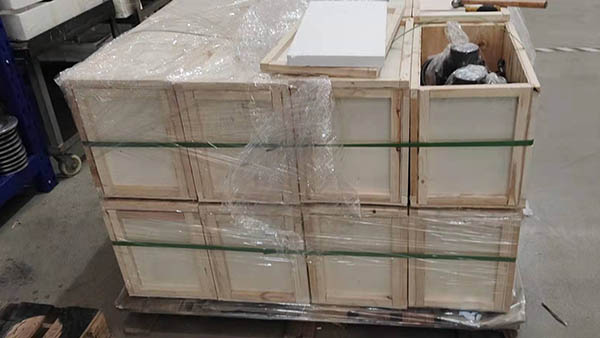

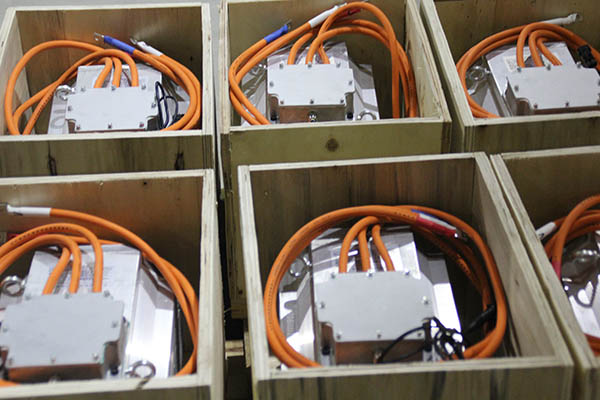

Iinkcukacha zokuPakisha	Ibhokisi okanye ibhokisi leplanga
Izibuko	Qingdao okanye njengoko kufuneka

Iingenelo zemoto ye-AC yenkampani yethu

1.Ilungelelene kwaye inokuthenjwa.Idityaniswe ne-axle yokuqhuba isithuthi se-involute spline shaft ukubonelela ngesiqinisekiso esithembekileyo sokhuseleko kwisithuthi.
2. Isakhono sokunyuka.I-torque ephezulu yokuqalisa, isantya esikhulu esinokuqhutywa ngesantya esiphezulu kunye nesantya esiphezulu, umthamo ophezulu wokugcwala, oya kubonelela ngezithuthi zombane ezinamandla aphezulu okuhlangabezana neemfuno zokunyuka.
3. Uluhlu olude lokuqhuba ngentlawulo enye.Ukusebenza kwemoto ephezulu, ukubonelela ngokusebenzayo.
4.Amandla okuthintela ukutyibilika.Xa iGolf ikwithambeka, i-AC motor iyigcina ingatyibiliki.
5.Ikhono lokuziqhelanisa neemeko ezahlukeneyo zendlela, okwenza ukuba i-braking yokuvuselela.
6. Ihlala ixesha elide kwaye kulula ukuyigcina.

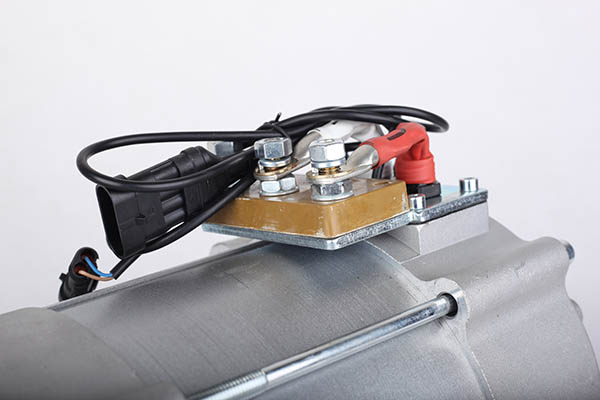

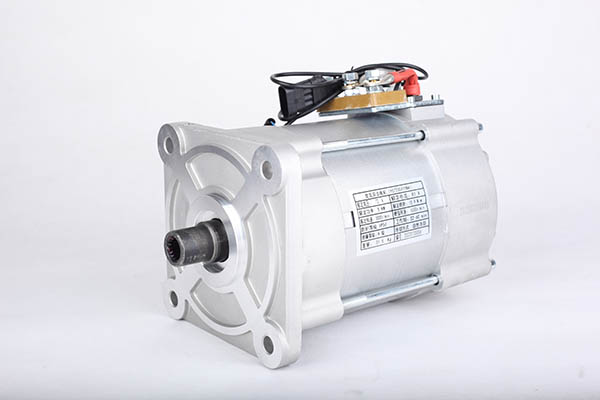

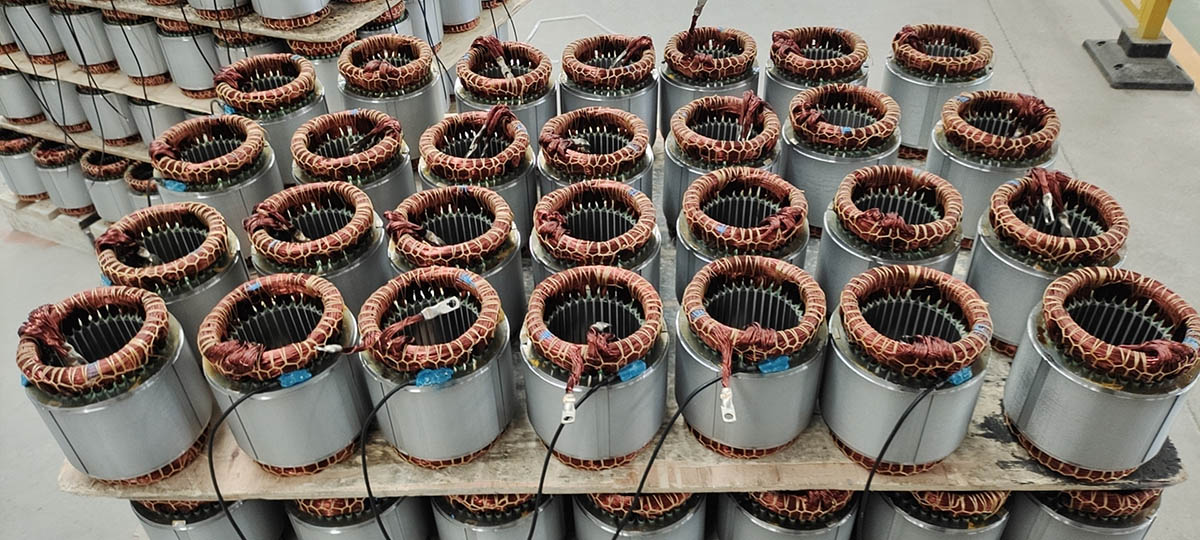

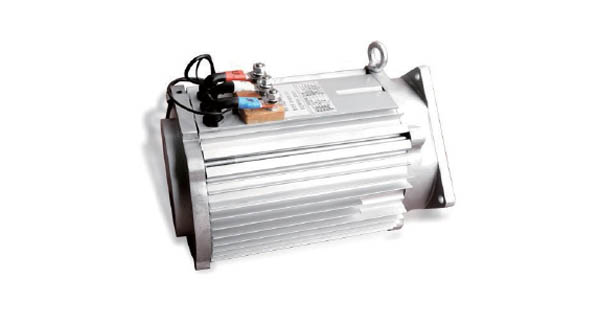

Ifoto yeMveliso

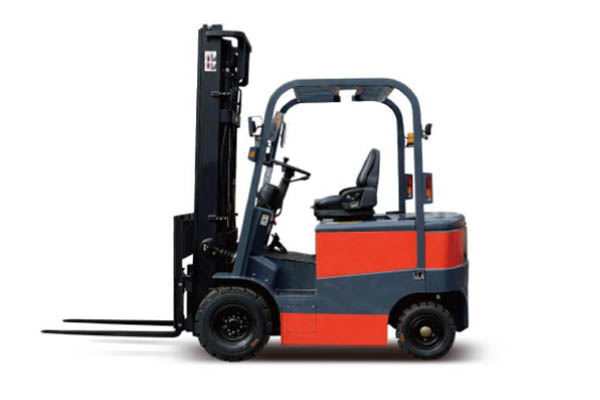

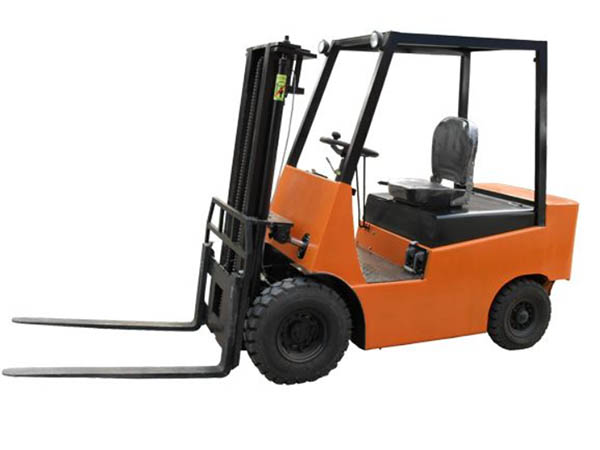

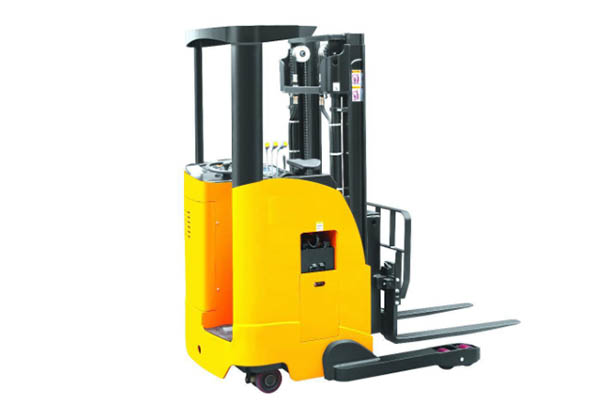

Isithuthi esisebenzayo: Forklift

DPD ACAM(AC ASYNCHRONOUS) Motor Series Specification Sheet
Amandla alinganisiweyo (KW)	3	4	5	6	7.5	10	13	15	15	20	25	30
Umbane webhetri (VDC)	48/60/72	48/60/72	48/60/72	72	72/96	72/96	72/96	108	96/144	96/144	312	96/144
Amandla Aphezulu (KW)	7.5	10	12.5	15	18.7	25	32.5	31	28	40	45	60
Ikalwe ngoku (A)	78/59/52	98/78/65	123/98/82	98	118/89	154/116	200/150	154	174/116	231/154	92	347/231
I-Torque ekalisiweyo (NM)	19/19.5	25.5/12.74	31.8/26.5/15.9	15.9	23.9	53	41.4	65.1	47.8/39.8	63.7	57.4	95.5
ITorque eyiNcopho (NM)	66.5/38	89.3/51	95.4/78.5/71.5	63.7	95.2	159	144.9	106.3	130/150	223	160	334.2
Isantya esikaliwe (RPM)	1500/3000	1500/3000	1500/1800/3000	3600	3000	1800	3000	2200	3000/3600	3000	4160	3000
Isantya esiphezulu (RPM)	4500/6000	4500/6000	4500/6000	6000		5400	6000	7500	6000		6800	6000
Inkqubo yokusebenza	S2:60min	S2:60min	S2:60min	S2:60min	S2:60min	S2:60min	S2:60min	S9	S9	S9	S9	S9
Inqanaba lokugquma	H	H	H	H	H	H	H	H	H	H	H	H
Indlela yokupholisa	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa kwendalo	ukupholisa amanzi
Ukusebenza kakuhle (100% LOAD)	85	85	85	85	88	90	90	90	90	90	90	90
Inqanaba loKhuseleko	IP54	IP54	IP54	IP54	IP54	IP54	IP67	IP68	IP69	IP70	IP71	IP72
Isicelo	Umkhweli onesantya esisezantsi/isithuthi solungiselelo							umkhweli onesantya esiphezulu/ulungiselelo/iSUV				ibhasi encinci isithuthi solungiselelo

Isiseko sobhedu sokwenene sisitshixo sokuthembeka

Imiyalelo yokusetyenziswa

1. Umsebenzisi kufuneka alandele iimfuno zalo myalelo.
2. Injini kufuneka igcinwe kwindawo engena umoya, eyomileyo kwaye ecocekileyo.Ukuba ixesha lokugcina lide kakhulu (iinyanga ezintandathu) , kuyimfuneko ukujonga ukuba igrisi yokuthwala iyomile.Ixabiso eliqhelekileyo lokumelana ne-insulation yovavanyo lwe-winding akufanele libe ngaphantsi kwe-5MΩ, ngaphandle koko kufuneka lomiswe kwi-oven kwi-80 ± 10 ℃.
3. Kwi-motor engena-bearingless ekupheleni kokwandiswa kwe-shaft, kufuneka ilungiswe emva kokufakwa ukujonga ukuba i-rotor iguquguqukayo kwaye akukho nto yokuxubha.
4.Jonga ukuba intambo yoqhagamshelo lwemoto ichanekile kwaye ithembekile.
5. Jonga ukuba umphezulu we-commutator unamafutha, kwaye iibrashi kufuneka zityibilike ngokukhululekileyo kwibhokisi yebrashi.
6.I-motor yochungechunge akufanele inikwe amandla kwaye iqhube phantsi komthwalo.Ukuba umsebenzisi kufuneka aqhube ngaphandle komthwalo, i-voltage kufuneka ilawulwe ngaphakathi kwe-15% yombane olinganisiweyo.
7. Akufunekanga kubekho irhasi edlayo kumoya opholileyo.

Sebenzisa okusingqongileyo

1.Ukuphakama akudluli kwi-1200 yeemitha.
2.Ubushushu be-ambient buphakathi kwe -25 ℃ kunye ne-40 ℃.
3.Xa ukufuma okuhambelanayo kufikelela kwi-100% , ukuxinwa kuya kubumba kumphezulu we-motor.
4.I-motor yahlulwe ibe luhlobo oluvaliweyo ngokupheleleyo kunye nohlobo oluvulekileyo.Ukuvalelwa ngokupheleleyo kunokuthintela ukungena kwezinto zangaphandle, uthuli kunye namanzi, kwaye uhlobo oluvulekileyo lunokuba lula ngakumbi ukugcina i-commutator kunye nokubuyisela ibrashi.
5.Ubuninzi obuvumelekileyo bangoku bemoto kwi-short-time overload ngamaxesha angama-3 ixabiso elilinganisiweyo.Ngeli xesha, i-torque yomthwalo ogqithisiweyo ngamaxesha angama-4.5 i-torque elinganisiweyo, kwaye ixesha akufanele lidlule umzuzu omnye.

Isebenza kuluhlu olubanzi

Iimveliso zeemoto ze-Xinda zisetyenziswa ngokubanzi kwi-automation ye-automation, ukubeka esweni ukhuseleko, izixhobo ze-laser, izixhobo ezilukiweyo, izixhobo zoomatshini, izixhobo zonyango, i-automation ye-automation kunye namandla amatsha kunye nezinye iinkalo.

Izithuthi ezifanelekileyo

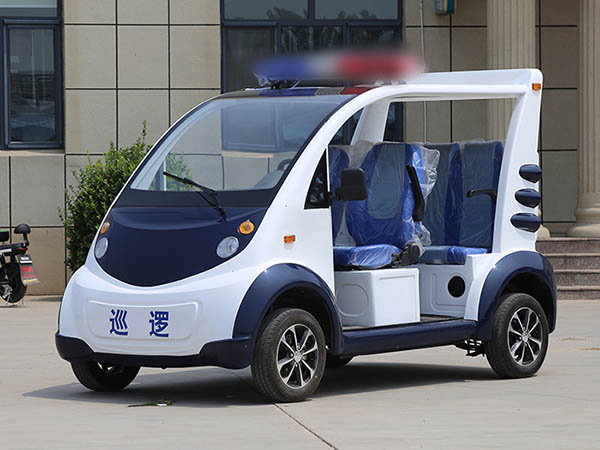

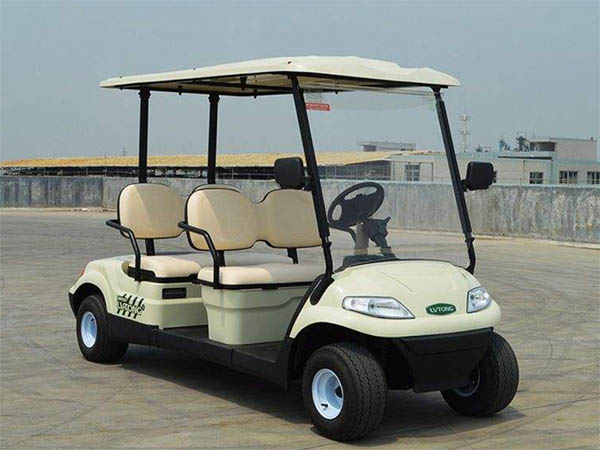

I-Xinda Motor ilungele iintlobo ezahlukeneyo zezithuthi: iimoto zokubuka indawo, iibhasi, iimoto zamapolisa, iimoto ezinamavili amane, iinqwelo zegalufa, izithuthuthu ezinamavili amathathu, iiforklift, kunye neemoto zokugada kwendalo.

Iimpazamo eziqhelekileyo kunye nezisombululo zeenjini

(a) Injini ayinakuqalwa
1. Isigaba sonikezelo lwamandla silahlekile okanye amandla ombane aphantsi kakhulu.Isisombululo: Jonga ukuba kukho naluphi na uqhawulo kwi-stator winding, kwaye emva koko ujonge umbane wombane.
2. I-rotor eyaphukileyo okanye echithwayo.I-motor inokuqaliswa ngaphandle komthwalo, kodwa ayikwazi ukuqaliswa ngomthwalo ongalunganga.Isisombululo: Khangela i-rotor yeziphene ezifana nemivalo ephukileyo okanye iintanda kunye ne-rotor bar tester eyaphukileyo.
3. I-motor igcwele kakhulu okanye ukuhanjiswa kubambekile.Isisombululo: Khetha i-motor enomthamo omkhulu wokuphelisa ukusilela komatshini ojikelezayo.

(b) Umsinga wamanqanaba amathathu enjini awulungelelaniswanga
1. Umbane wesigaba sesithathu sombane awulingani.Isisombululo: Ukulinganisa umbane wokubonelela nge-voltmeter.
2.Ezinye iikhoyili kwi-stator winding zi-short-circuited.Isisombululo: Linganisa inqanaba lesithathu langoku nge-ammeter okanye uqhaqhe i-motor ukujonga ikhoyili eshushu kakhulu ngesandla.

(c) Ukushisa okugqithisileyo kweebheringi zeemoto
1.Ukuthwala konakele.Isisombululo: Faka endaweni yeebheringi ezintsha.
2. I-bearing iqinile kakhulu okanye ikhululekile kakhulu nge-shaft okanye i-cover cover.Isisombululo: Lungisa i-shaft okanye i-end cap ukuze ilingane i-shaft kwibheringi.
3.Igrisi eninzi kakhulu, incinci kakhulu okanye imdaka kakhulu, kukho isanti nothuli izinto zasemzini.Isisombululo: Coca iibheringi kwaye ugcwalise ngegrisi ecocekileyo.
4. Ufakelo lwemoto alugxininisi.Isisombululo: Lungisa imeko ye-coaxial yofakelo lwemoto.
