Izincedisi zombane ezinesantya esiphezulu se-axle yokukhwela igiya ngasemva kwi-asi ephezulu yamandla aguqulwe izincedisi obonakalayo

Izincedisi zokuhlanganisa i-axle yombane ngasemva kwe-axle enesantya esiphezulu sokukhwela igiya ngasemva kwe-axle yamandla aphezulu aguqulwe izincedisi

Inkcazelo emfutshane:

I-axle yombane ye-axle yangasemva yendibano idisk brake edityanisiweyo yedrum brake gear shift differential high-power motor motor engineering modified split back axle 80-85cm + gearbox eqhelekileyo + 130/160.

Malunga nokuhanjiswa kobungakanani

Umgangatho ophezulu we-axles wangemuva oqhekezayo we-tricycles zombane / izithuthi ezivaliweyo, ezifumaneka ngobude obahlukeneyo, ukulinganisa ubude obupheleleyo becala le-disc ye-brake (kubandakanywa necala lokwahlukana), kwaye inokwenziwa ngokwezifiso.Izibiyeli kunye neelugi zokutsala kwi-axle yangasemva kufuneka zidityaniswe ngokweemfuno.Umngxuma wokutsala u-1.5 cm, kwaye ukuphakama kwesibiyeli ngu-1.5, 2.5, 3.5, 5.5.Ibhodwe lokuqhawula lihlulwe ngohlobo lwe-130 kunye nohlobo lwe-160, kwaye ubude bunokukhethwa.

Thumela i-imeyile kuthi

Iinkcukacha zeMveliso

Iithegi zeMveliso

Amanqaku okuthenga

1.Malunga nokuhanjiswa kobungakanani
Umgangatho ophezulu we-axles wangemuva oqhekezayo we-tricycles zombane / izithuthi ezivaliweyo, ezifumaneka ngobude obahlukeneyo, ukulinganisa ubude obupheleleyo becala le-disc ye-brake (kubandakanywa necala lokwahlukana), kwaye inokwenziwa ngokwezifiso.Izibiyeli kunye neelugi zokutsala kwi-axle yangasemva kufuneka zidityaniswe ngokweemfuno.Umngxuma wokutsala u-1.5 cm, kwaye ukuphakama kwesibiyeli ngu-1.5, 2.5, 3.5, 5.5.Ibhodwe lokuqhawula lihlulwe ngohlobo lwe-130 kunye nohlobo lwe-160, kwaye ubude bunokukhethwa.

2. Emva- kwemimiselo yokuthengisa
Imoto yebhokisi yegiya iqinisekisiwe unyaka omnye, kwaye umthengi unoxanduva lomthwalo.Zonke ii-axles ezingasemva ziyahlolwa kwaye ziqinisekisiwe ukuba azinangxaki phambi kokunikezelwa.I-axle yangasemva inzima kakhulu, nceda uqaphele ubunzima xa ubeka umyalelo.

3.Imibuzo malunga nokwenziwa ngokwezifiso kwe-asi yangasemva
I-axle yangasemva ixhasa ukwenza ngokwezifiso, kwaye iya kuthunyelwa phakathi kweentsuku ze-5-10 phantsi kweemeko eziqhelekileyo.

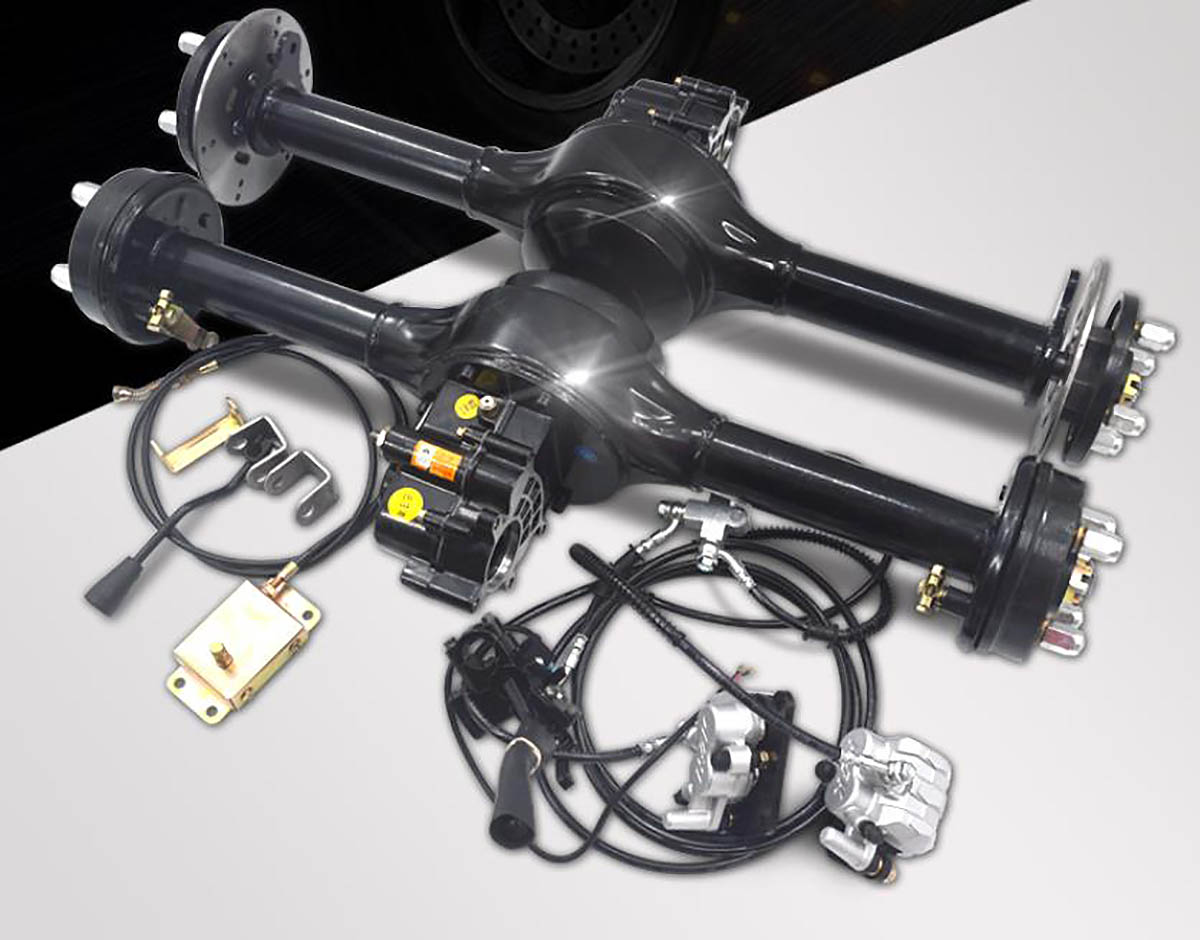

Indibano ye-asi yetricycle yombane yangasemva

I-Seiko Yenziwe / Eyomeleleyo / Yenziwe ngokwezifiso

Ukunyuka okulula, umthamo oqinileyo womthwalo

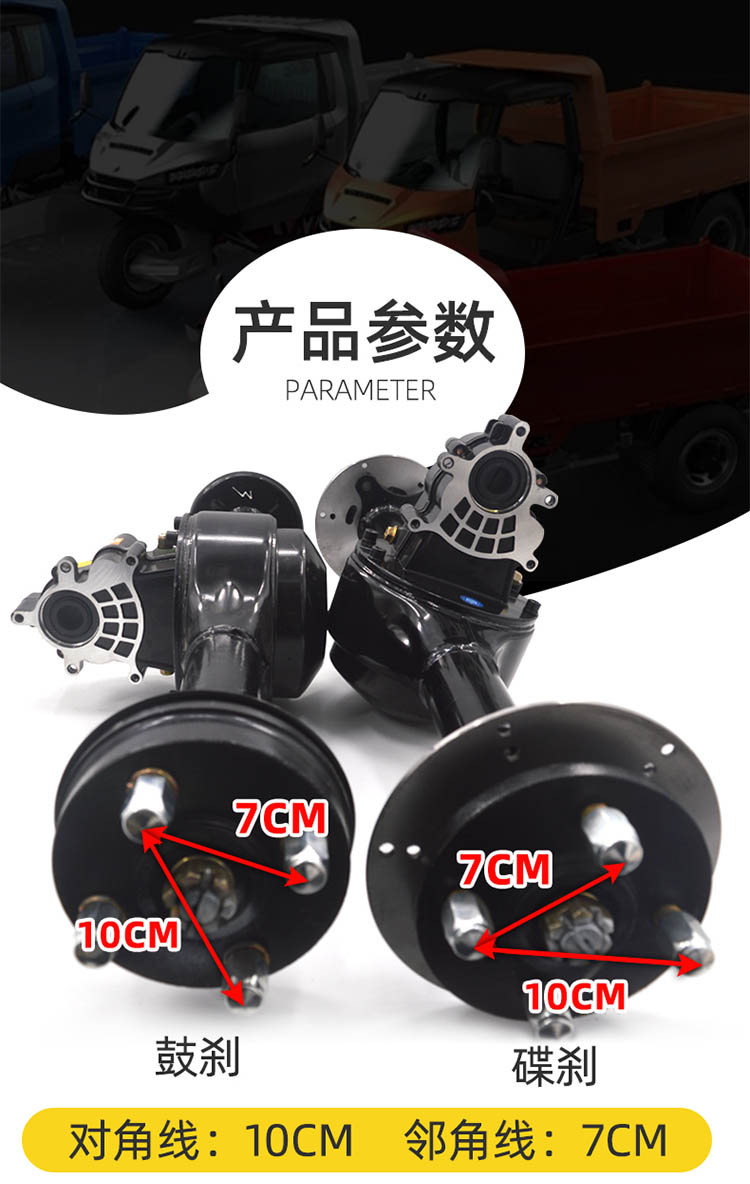

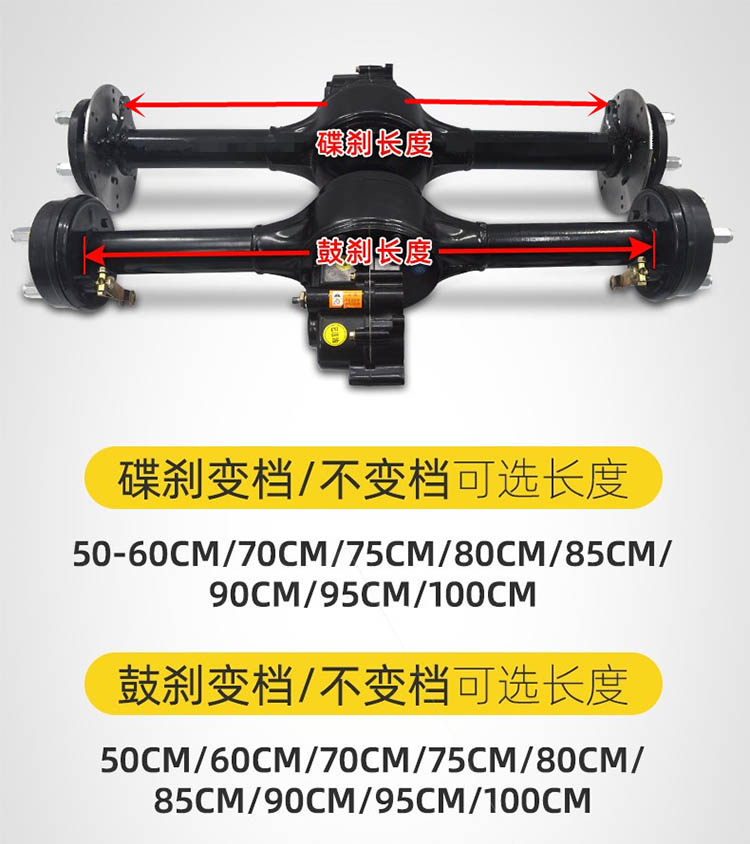

Iiparamitha zobungakanani bemveliso
I-Drum brake / i-disc brake diagonal 10cm, idiagonal ekufutshane 7cm

Ukutshintsha i-Disc brake / ubude obungatshintshiyo obuzikhethelayo: 50-60cm/70cm/75cm/80cm/85cm/90cm/95cm/100cm
Ukutshintsha igubu brake / ukungatshintshi ubude ozikhethelayo: 50/60cm/70cm/75cm/80cm/85cm/90cm/95cm/100cm

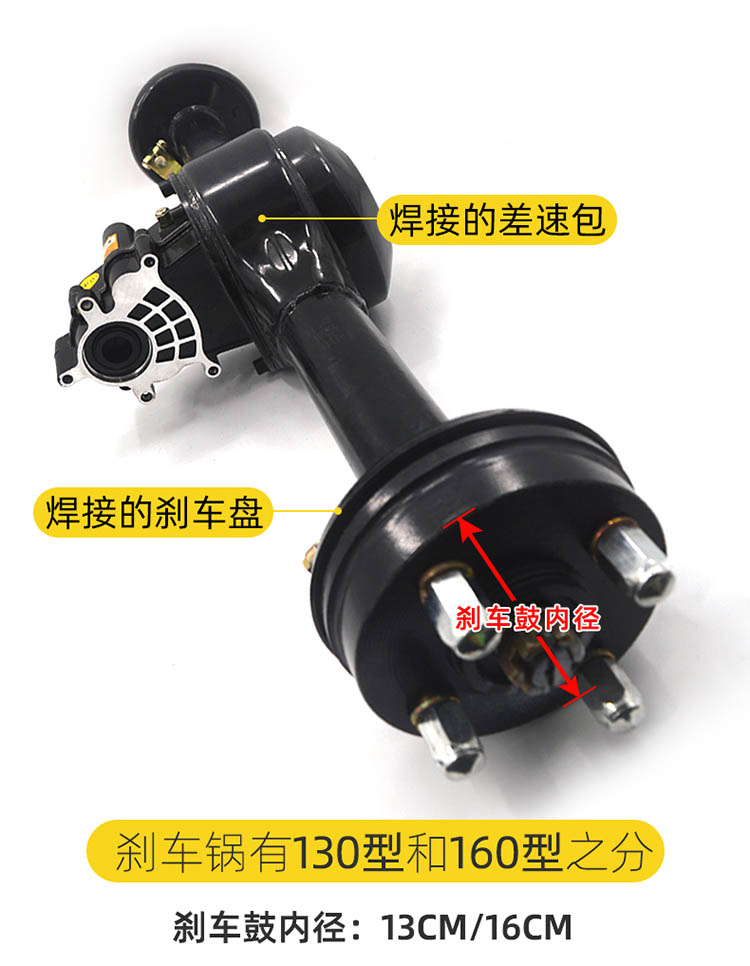

Ibhegi edityanisiweyo edityanisiweyo kunye neediski zebrake ezidityanisiweyo
Imbiza yeBrake yahlulwe ngohlobo lwe-130 kunye nohlobo lwe-160
Umgqomo weBrake wangaphakathi: 13cm/16cm

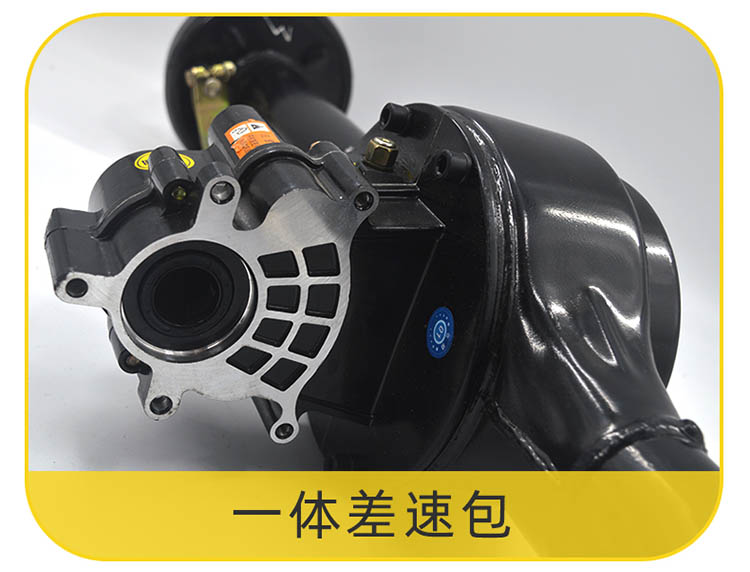

Iphakheji enye yesantya esahlukileyo

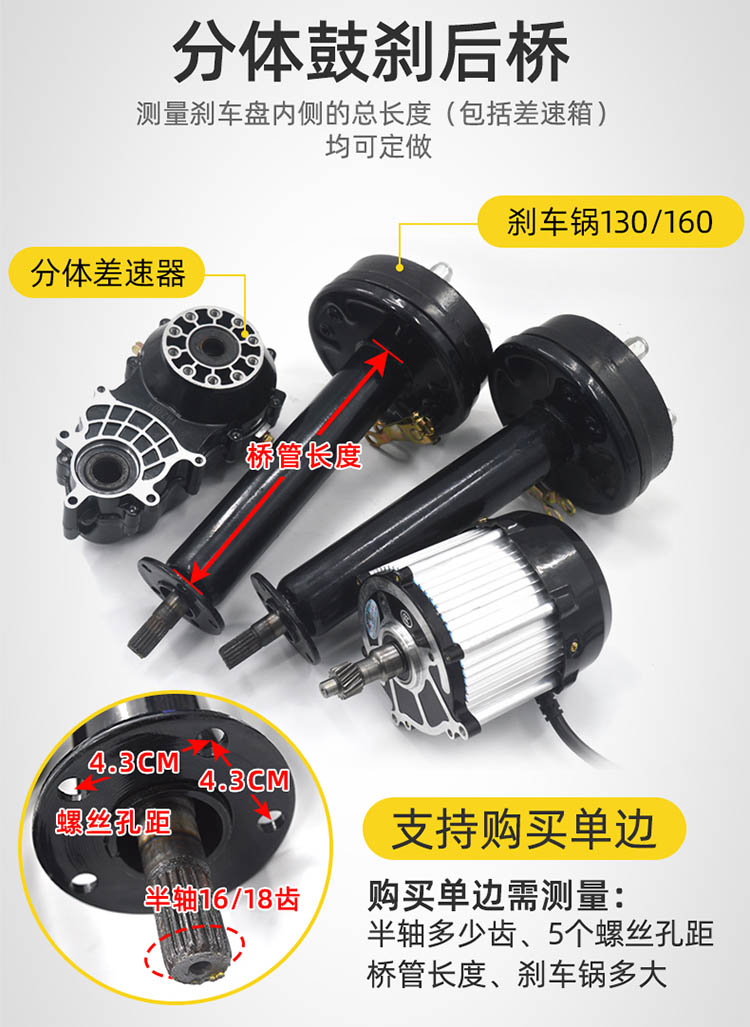

Igubu lokwahlula i-asi yangemva ye-asi ebandakanya umahluko kunye nembiza yebhuleki 130/160
Ukulinganisa ubude obupheleleyo becala langaphakathi le-disc ye-brake (kubandakanywa necala lokwahlukana) linokwenziwa ngokwezifiso
Screw umngxuma umgama 4.3cm, isiqingatha shaft 16/18 amazinyo
Inkxaso yokuthenga icala elinye, kufuneka ulinganise: mangaphi amazinyo e-half shaft, i-5 screw hole isithuba, ubude betyhubhu yebhulorho, ubungakanani bembiza yebhuloki.

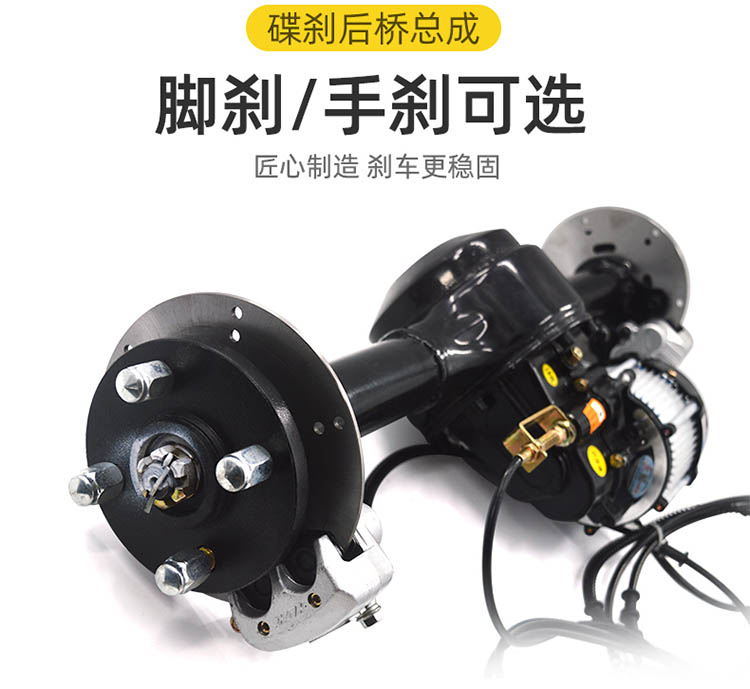

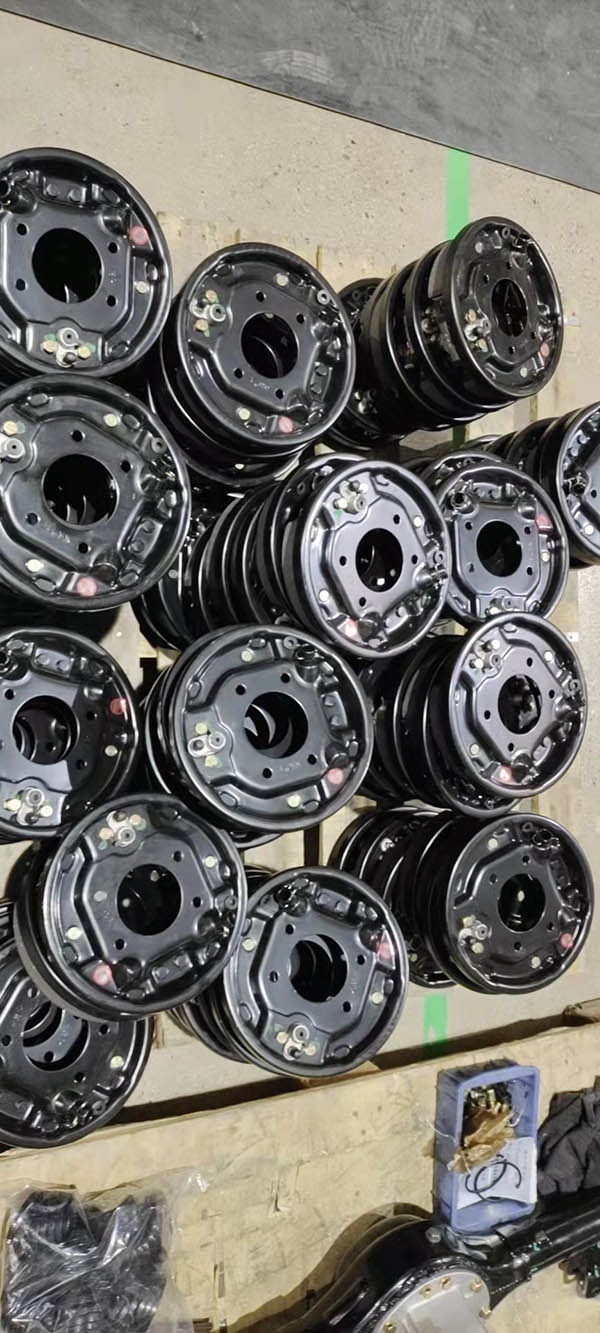

Idiskhi ye-axle yokuqhobosha ngasemva indibano
I-foot brake / handbrake ngokuzithandela
Ubukrelekrele benza iziqhoboshi zizinze ngakumbi

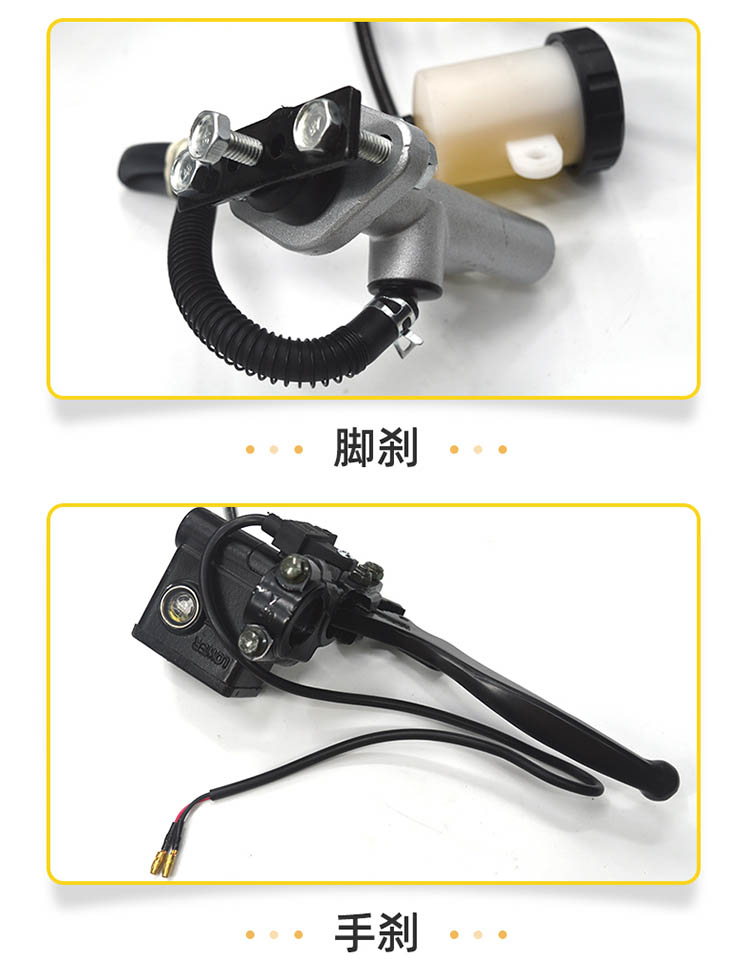

I-footbrake kunye ne-handbrake

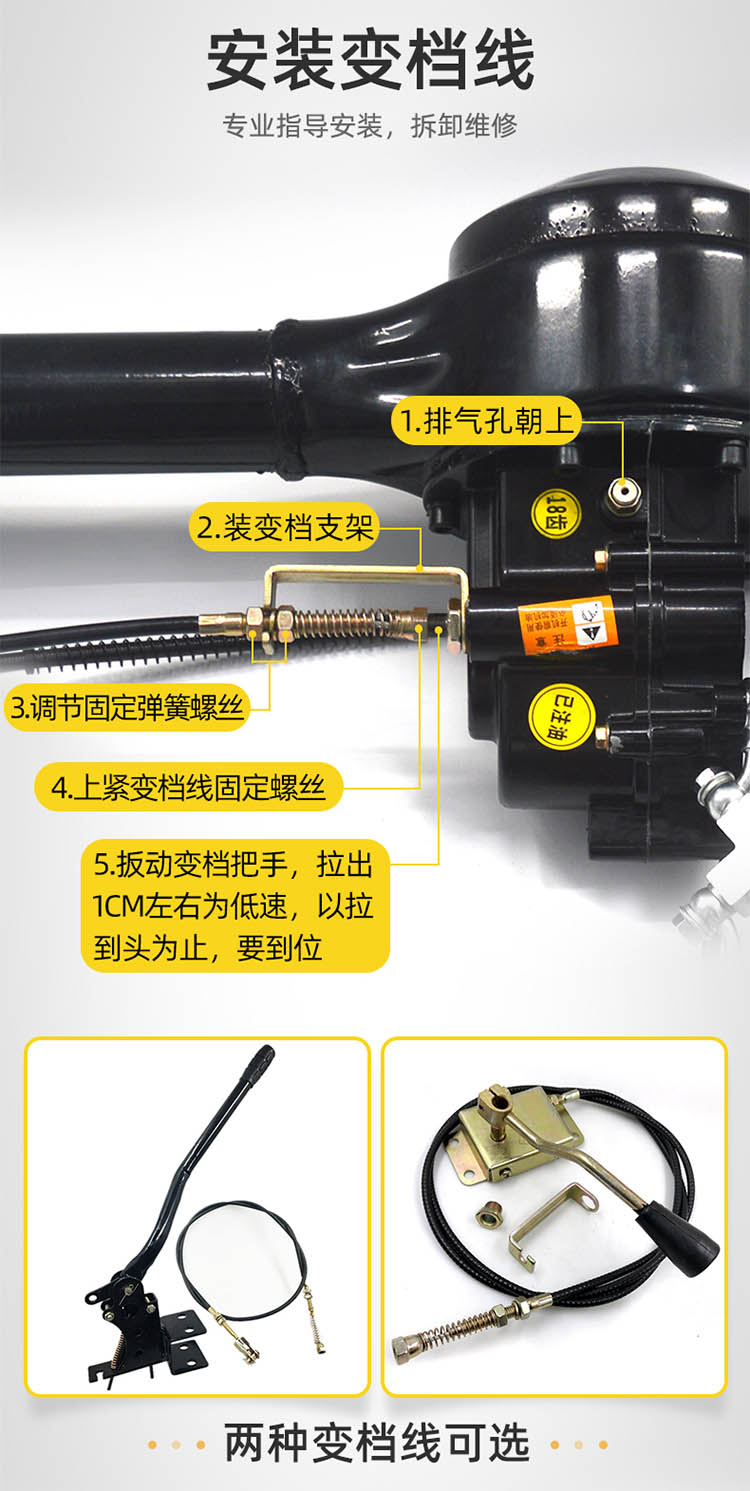

Faka intambo yeshifti
Imigca emibini yokutshintsha ekhoyo

1. Iifestile zomoya zijonge phezulu
2. Faka isibiyeli seshifti.
3. Lungisa isikrufu sentwasahlobo yokulungisa.
4.Qinisa isikrufu sokulungisa intambo yokutshintsha.
5.Tsala umqheba wokutshintsha, khupha malunga ne-1cm ngesantya esiphantsi, uyikhuphe ekupheleni, kwaye uyitsale endaweni.

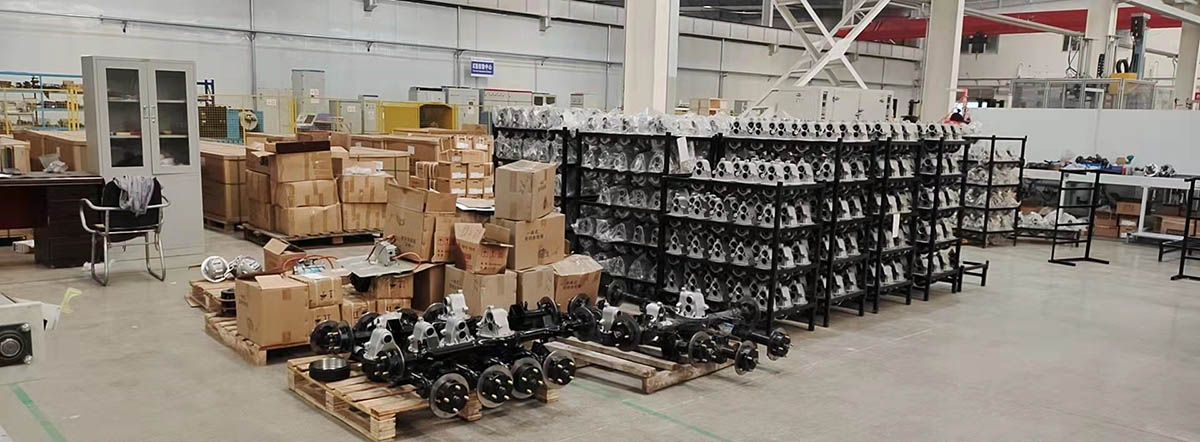

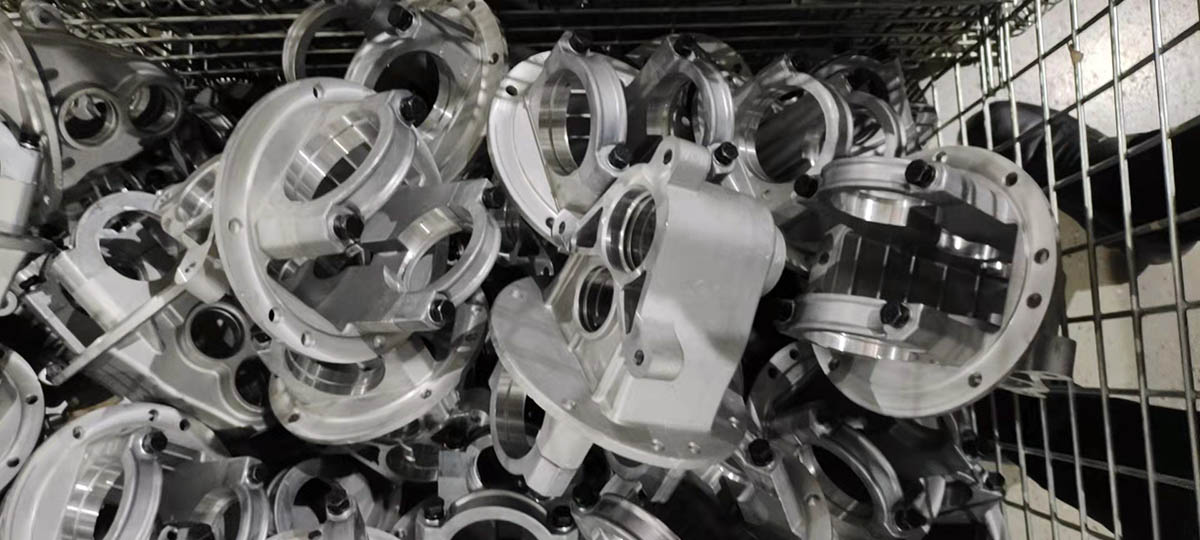

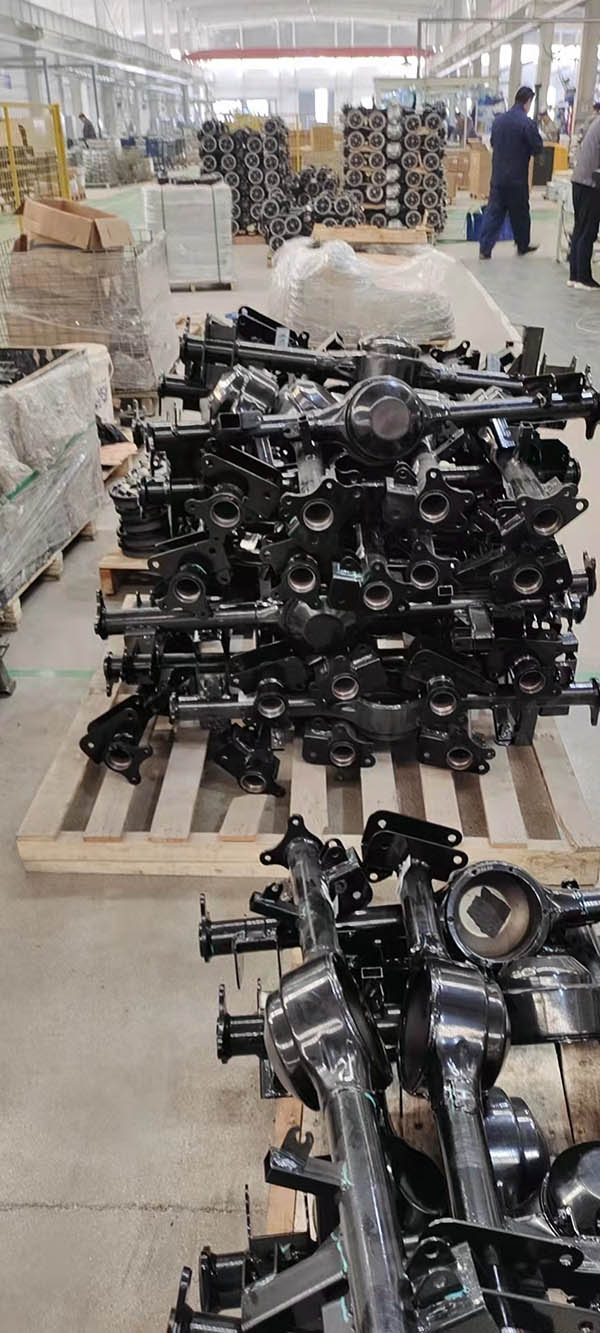

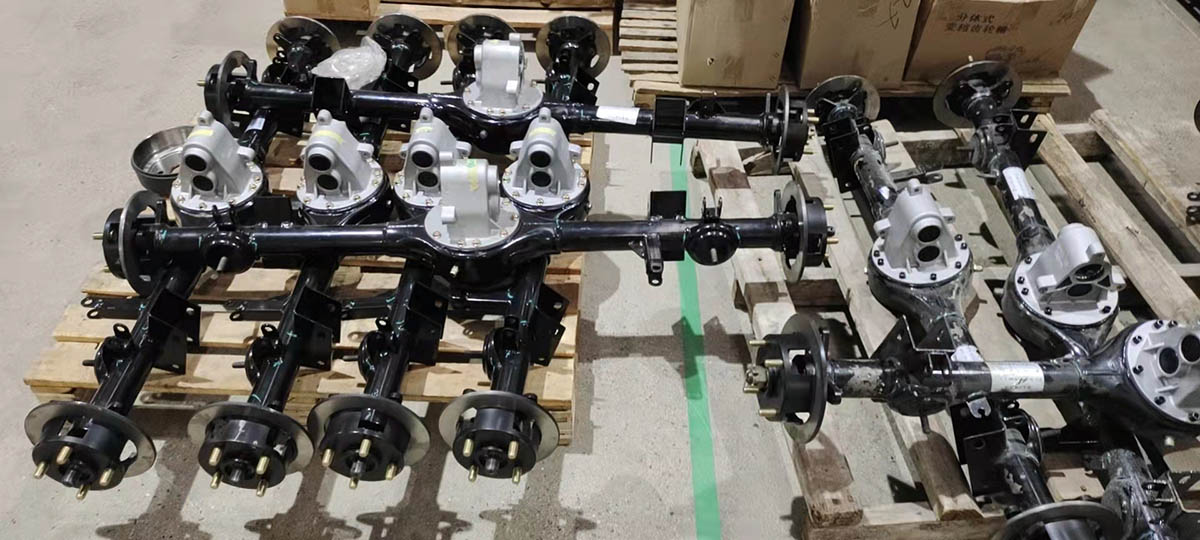

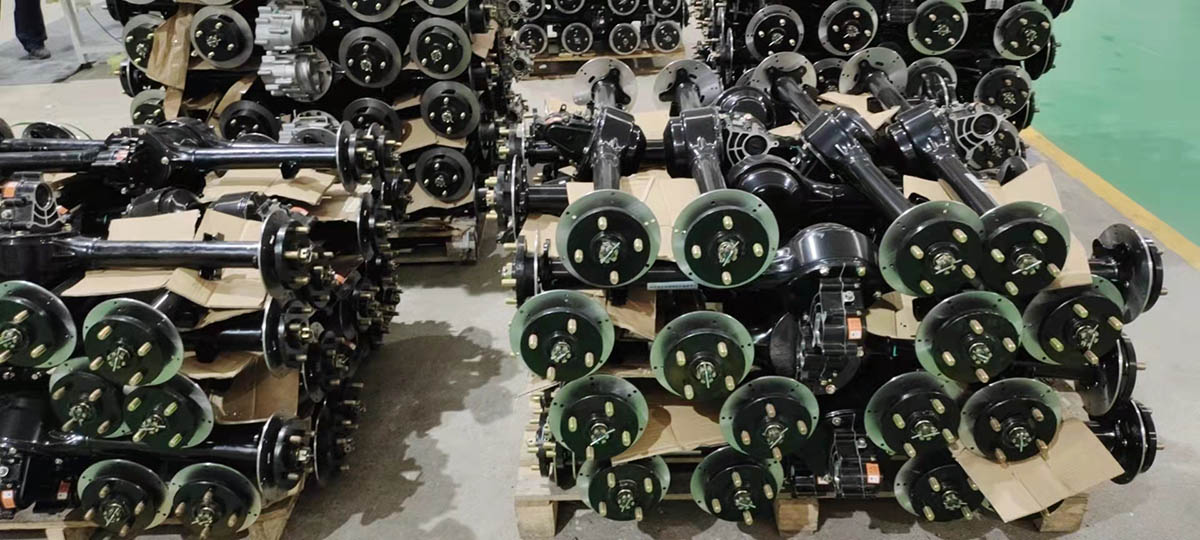

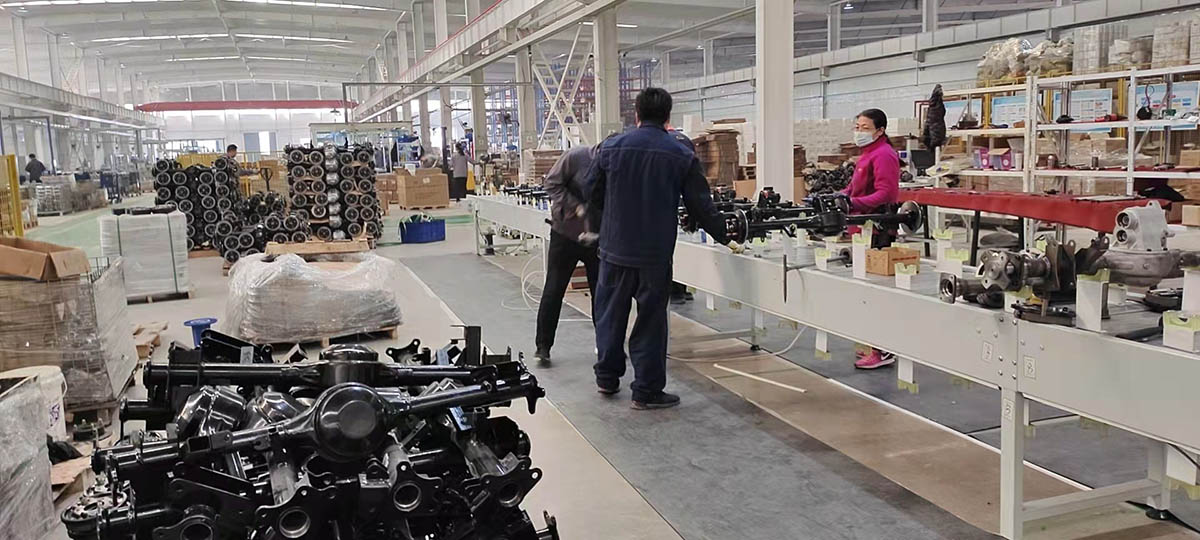

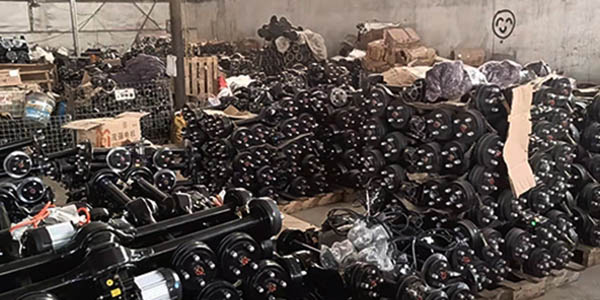

Inkqubo yokuvelisa i-axle yangasemva
1. Ukulungiswa kwemathiriyeli ekrwada yokuveliswa kwe-asi yangasemva.

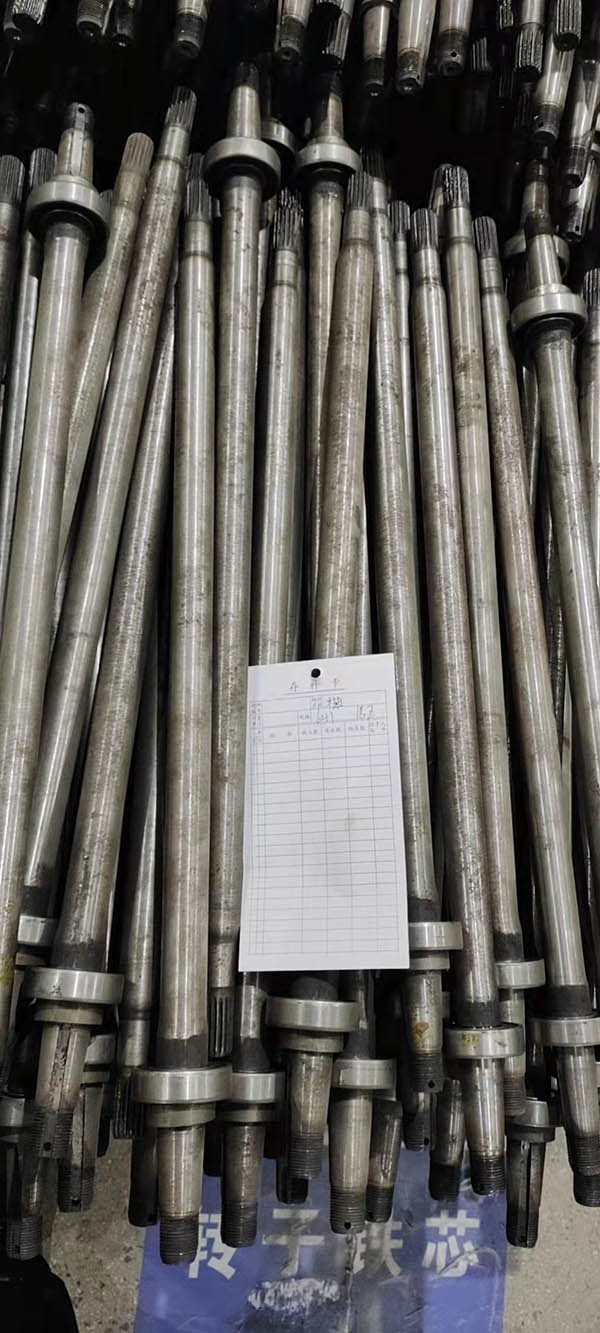

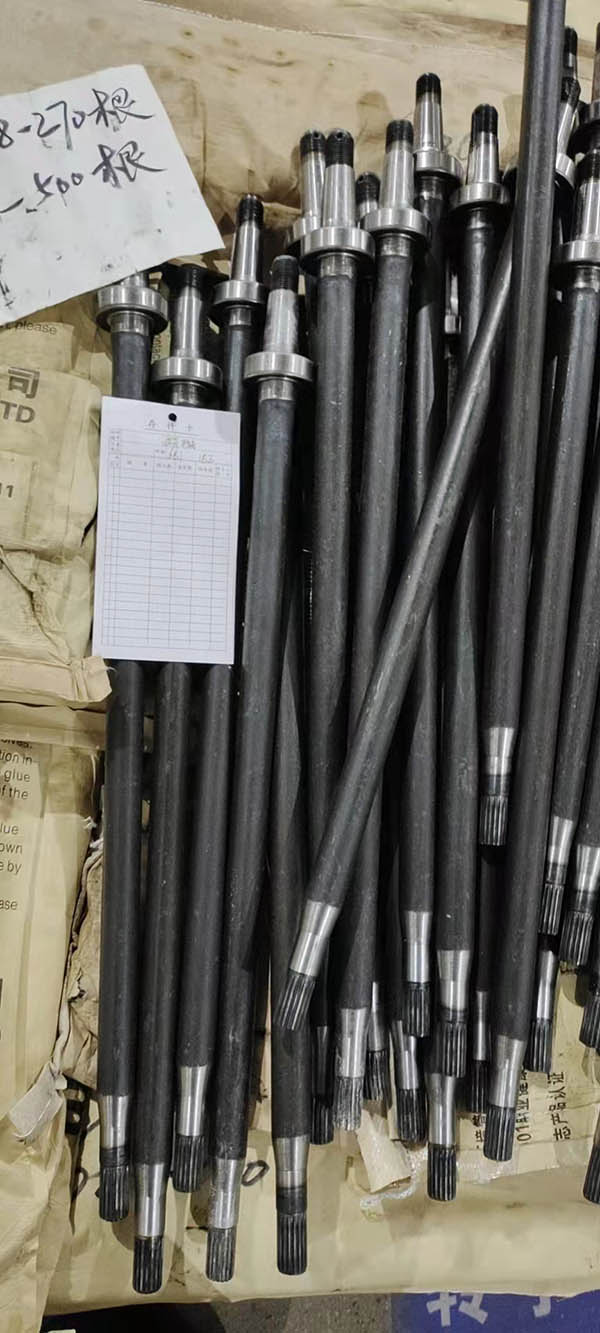

2. Ithala leencwadi lezinto libandakanya iishafti zesiqingatha, iziqhoboshi, iityhubhu zebhulorho, ukusetyenzwa kwe-welding, ipeyinti yokubhaka, kunye neemveliso ezigqityiweyo.

2. Hlanganisa kwaye ufake i-gearbox half shaft, i-bearing, kunye ne-brake pot, kwaye ujonge ukuba kukho ingxolo engaqhelekanga okanye ukuvuza kweoyile ngexesha lovavanyo lokuzaliswa kweoyile.
