umpheki wasekhitshini umpheki wokupheka umatshini wokupheka werobhothi switched mathidala imoto Umfanekiso ofakiweyo

Umpheki wasekhitshini upheka umatshini wokupheka werobhothi utshintshe injini yokungafuni

Inkcazelo emfutshane:

I-800W isantya esiphezulu esitshintshileyo kwimoto yokuthandabuza kunye nomqhubi we-35000rpm isantya somxube wesixhobo sasekhaya

1. Ukusebenza kwenkqubo ephezulu: Kuluhlu lwayo olubanzi lokulawula isantya, ukusebenza kakuhle ngokubanzi kuncinci kwi-10% ephezulu kunezinye iinkqubo zokulawula isantya, kwaye ukusebenza okuphezulu kubonakala ngokucacileyo kwisantya esiphantsi kunye nomthwalo ongekho.

2. Uluhlu olubanzi lolawulo lwesantya, ukusebenza kwexesha elide kwisantya esiphantsi: Inokuqhuba phantsi komthwalo ixesha elide kuluhlu ukusuka kwi-zero ukuya kwisantya esiphezulu, kwaye ukunyuka kweqondo lokushisa kwemoto kunye nomlawuli kuphantsi kunokulinganisa. umthwalo.

3. I-torque ephezulu yokuqala, i-low start current current: xa i-torque yokuqala ifikelela kwi-150% ye-torque elinganisiweyo, i-current current i-30% kuphela ye-current rated current.

Thumela i-imeyile kuthi

Iinkcukacha zeMveliso

Iithegi zeMveliso

Motor Parameters

I-Voltage yokusebenza	DC300V
Ikalwe ngoku	2.8±10%A
Ubuninzi bangoku	5.4A
Ukuqala kombane	DC23V~25V
amandla alinganisiwe	700±10%W
Isantya esilinganiselwe	35000±10%RPM
Amandla angasebenziyo	<100W
inani leepali	2
torque	0.2NM
ukusebenza	80%±10%
ukutshintshwa	Axial CW
ingxolo	96dB MAX, <30cm
ubunzima	1.68Kg
ukuzala	2 iibheringi zebhola
ulawulo	Isivamvo seholo
Faka	intaba yeflange

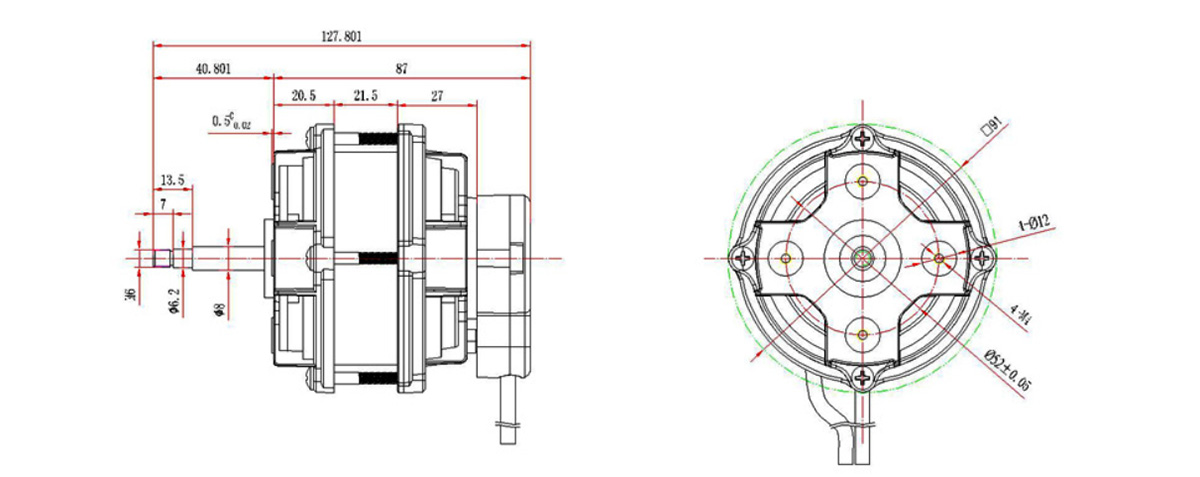

Ulwakhiwo lweMoto

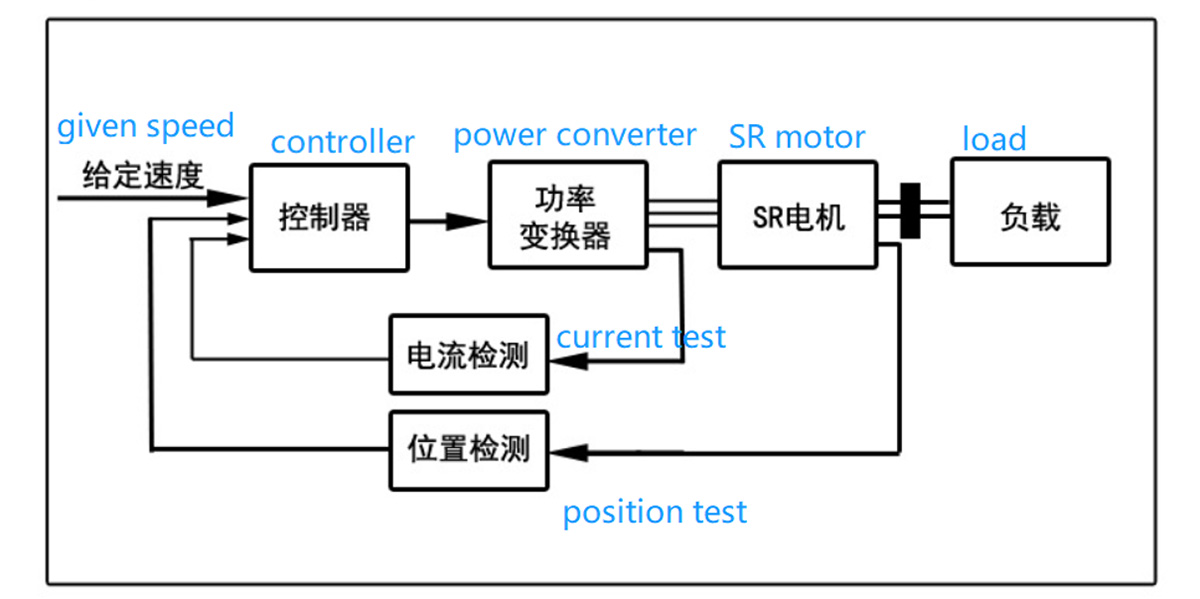

1. Ukubunjwa kwenkqubo yokuqhuba i-motor drive yokungafuni
Ukutshintshela inkqubo yokuthandabuza yokuqhuba (i-SRD) ubukhulu becala yenziwe yimoto yokuthandabuza etshintshiweyo, isiguquli samandla, isilawuli kunye nomtshini.

2.Utshintshe injini yokungafuni
Iinjini ze-SR zinokuthi ziyilwe zibe yinqanaba elinye, inqanaba ezibini, inqanaba lesithathu, inqanaba lesine kunye nezigaba ezininzi ezinamanani ahlukeneyo enqanaba, kwaye kukho ubume bezinyo elinye ngepali kunye nesakhiwo sezinyo ezininzi ngepali nganye, umoya we-axial. i-gap, i-gap yomoya we-radial kunye ne-axial air gap.I-radial hybrid air gap structure, i-rotor yangaphakathi kunye nesakhiwo se-rotor yangaphandle, iinjini ze-SR ezingaphantsi kwesigaba sesithathu ngokubanzi azikwazi ukuziqala.Inani elikhulu lezigaba liluncedo ekunciphiseni ukuguquguquka kwe-torque, kodwa kukhokelela kwisakhiwo esiyinkimbinkimbi, ezininzi izixhobo eziphambili zokutshintsha kunye neendleko ezongeziweyo.Okwangoku, isigaba sesibini se-6 / 4-pole isakhiwo kunye nesigaba sesine se-8 / 6 -isakhiwo senqanaba sisetyenziswa ngokubanzi.

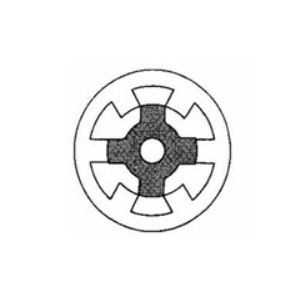

Ulwakhiwo oluqhelekileyo lwenqanaba le-3
6/4 kwipolar SR motor

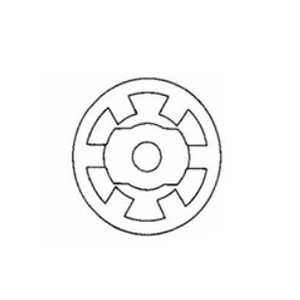

3-isigaba 6/2
kwipolar SR motor

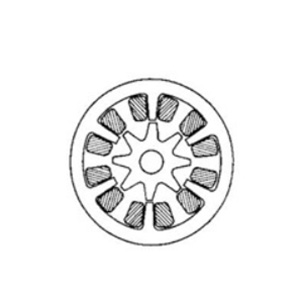

3-isigaba 6/8
kwipolar SR motor

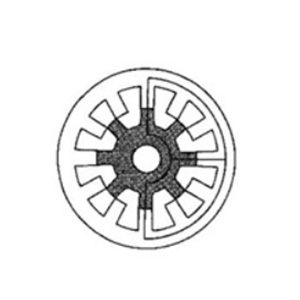

3-isigaba 12/8
kwipolar SR motor

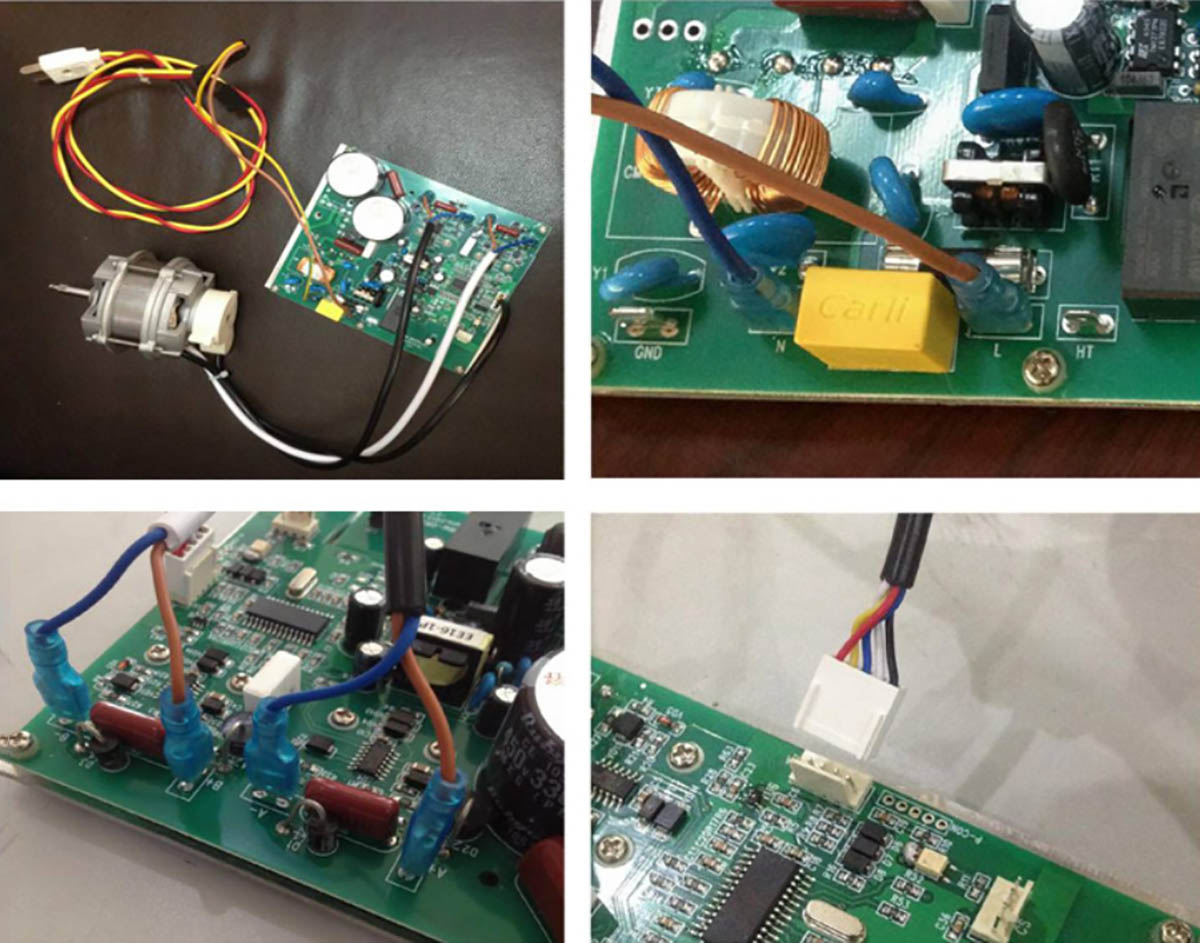

3. Idayagram ye-wiring ebonakalayo yemoto kunye nomqhubi

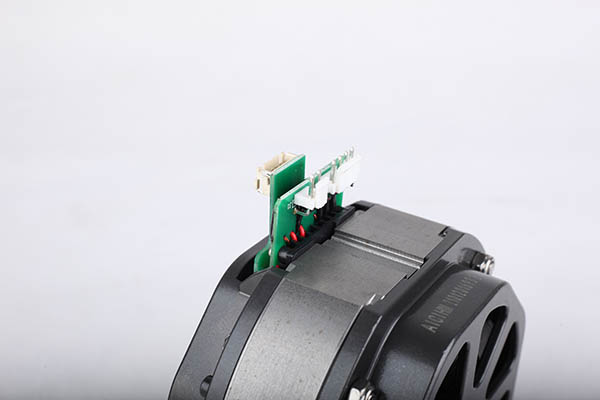

Ifoto yeMveliso

Iintambo zesigaba seMotor

Mnyama (Brown /A+ Blue /A-), Mhlophe (Brown /A+ Blue /A- ), ubude bocingo L=380 ± 50mm
Iingcingo zeholo:
Ebomvu ( +5V), emnyama ( GND), emthubi ( SA ), eluhlaza okwesibhakabhaka ( SB), emhlophe ( SC ), ubude bomgca L= ubude bomgca L=380 ± 50mm
Ugcino: 5 ℃ ~40 ℃, ukufuma <90%
Iklasi yokugquma: F
Ikhoyili engena-crack ijika imizuzu emi-3 kwi-130% yombane olinganisiweyo.
Ubomi bokusebenza: iiyure ezingama-2000 phantsi kweemeko eziqhelekileyo zokusebenza.
I-axial displacement kufuneka ibe ngaphantsi kwe-0.02mm xa i-motor isebenza.

Iimpawu zeemoto

1.Ukusebenza kwenkqubo ephezulu: Kuluhlu lwayo olubanzi lokulawula isantya, ukusebenza kakuhle ngokubanzi ubuncinane kwi-10% ephezulu kunezinye iinkqubo zokulawula isantya, kwaye ukusebenza okuphezulu kubonakala ngokucacileyo kwisantya esiphantsi kunye nomthwalo ongalinganiyo.
2.Uluhlu olubanzi lolawulo lwesantya, ukusebenza kwexesha elide kwisantya esiphantsi: Inokusebenza phantsi komthwalo ixesha elide kuluhlu ukusuka kwi-zero ukuya kwisantya esiphezulu, kwaye ukunyuka kweqondo lokushisa kwemoto kunye nomlawuli kuphantsi kunomthwalo olinganisiweyo.
3.I-torque ephezulu yokuqala, i-low start current current: xa i-torque yokuqala ifikelela kwi-150% ye-torque elinganisiweyo, i-torque yokuqala i-30% kuphela ye-current rated current.
4. Inokuqala kwaye iyeke rhoqo, kwaye itshintshe phakathi kokujikeleza phambili kunye nokubuyela umva: inokuqala kwaye ime rhoqo, kwaye itshintshe phakathi kokujikeleza phambili kunye nokubuyisela umva rhoqo.Xa kukho iyunithi yokuqhobosha kwaye amandla okuqhobosha ahlangabezana nemfuneko yexesha, ukuqalisa-ukuyeka kunye nokubuyela umva kokutshintsha kunokufikelela amaxesha angaphezu kwe-1,000 ngeyure.
5. Umthamo onamandla ogqithisiweyo: xa umthwalo ukhulu kakhulu kunomthwalo olinganisiweyo ixesha elifutshane, isantya siya kuhla, amandla aphezulu okukhutshwa aya kugcinwa, kwaye akuyi kubakho i-overcurrent phenomenon.Xa umthwalo ubuyela kwisiqhelo, isantya sibuyela kwisantya esimiselweyo.
6.Amandla omatshini kunye nokuthembeka kuphezulu kunezinye iintlobo zeenjini.I-rotor ayinayo imagnethi esisigxina kwaye ingaba nokunyuka okuphezulu okuvumelekileyo kweqondo lokushisa.
