I-J-SZ(ZYT)-PX uthotho lweemotor ezincinci ze-DC ezilungiselelwe ngokulandelelana zenziwe nge-SZ(ZYT) uthotho lweemoto ze-DC kunye nohlobo lwe-PX oluchanekileyo lwezinciphisi zeplanethi ezichanekileyo, kwaye zixhotyiswe ngobonelelo lwamandla, ezinokuqonda ukulawulwa kwesantya esingenanyathelo.Uluhlu olubanzi lohlengahlengiso, ubungakanani obuncinci, ubunzima obulula, ukusebenza kakuhle okuphezulu, ubume be-compact, i-torque enkulu yokuphuma, esetyenziswa ngokubanzi kwiidrives ezifuna isantya esiphantsi, i-torque ephezulu, kunye nommiselo wesantya esingenanyathelo.Isantya esiguquguqukayo esingenasiphelo.
I-PX yochungechunge lwezixhobo zokunciphisa iplanethi inokuqhagamshelwa ngokuthe ngqo kwiimotor ze-AC, iimotor stepper kunye nezinye iimotor.
Uthotho lwe-PX lunokudityaniswa ngokuthe ngqo kwisinciphisi segiya yeentshulube kunye nesinciphisi se-cycloidal pinwheel ukwenza izinciphisi ezinesantya esahlukileyo okanye isantya esikhulu.

UMyalelo weModeli yoMnciphisi

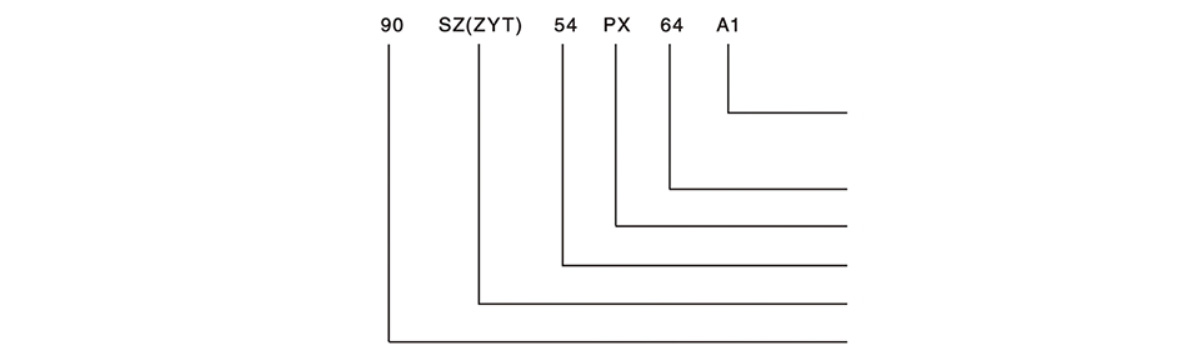

Imodeli yeMoto

Ifom yokufakela i-A1: I-A1 kukufakwa kweenyawo, i-A3 kukufakwa kwe-flange, i-B5 kukufakwa kwe-flange ejikelezayo
64 -Umlinganiselo wokunciphisa: 1:64
I-PX - Isinciphisi sePlanethi esichanekileyo
I-54 - ikhowudi yeparameter yokusebenza kweMoto
SZ(ZYT ) - DC Servo Motor (Permanent Magnet DC Motor)
90 - Inombolo yesiseko seMotor: Ibonisa ububanzi obungaphandle be-90mm

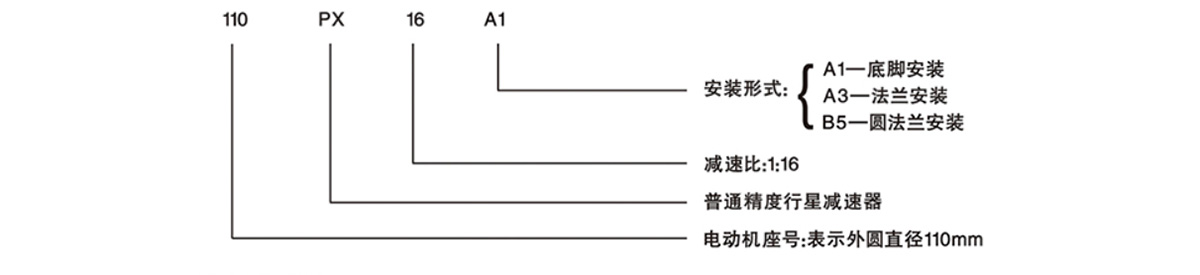

Imodeli yokunciphisa

Ifom yokufakela i-A1: I-A1 kukufakwa kweenyawo, i-A3 kukufakwa kwe-flange, i-B5 kukufakwa kwe-flange ejikelezayo
I-16 - Umlinganiselo wokunciphisa: 1:64
I-PX - Isinciphisi sePlanethi esichanekileyo
110 - Inombolo yesiseko seMotor: Ibonisa i-diameter yangaphandle ye-90mm

Idatha yobugcisa yemoto yombane

Isantya(r/min)	Torque(mN.m)	Umzekelo	Amandla	Isantya esikaliwe (r/min)	Faka	Ulinganiso lweVoltage		Nciphisa umlinganiselo	Amagqabantshintshi
750	260	55ZYT	29	3000	A3	24V:55ZYT51 27V:55ZYT52 48V:55ZYT53 110V:55ZYT54		4
187.5	740							16
47	21200							64
12	5900							256
500	390							6
83	1660							36
14	7180							216
750	450	70ZYT01	50	30000		24		4
		70ZYT02				27
		70ZYT03				48
		70ZYT04				110
1500	380	70ZYT05	85	6000		24		4
		70ZYT06				27
		70ZYT07				48
		70ZYT08				110
750	630	70ZYT51	70	3000		24		4
		70ZYT52				27
		70ZYT53				48
		70ZYT54				110
1500	540	70ZYT55	120	6000		24		4
		70ZYT56				27
		70ZYT57				48
		70ZYT58				110
187.5	1270	70ZYT01	50	3000		24		16
		70ZYT02				27
		70ZYT03				48
		70ZYT04				110
187.5	1780	70ZYT51	70	3000		24		16
		70ZYT52				27
		70ZYT53				48
		70ZYT54				110
47	3670	70ZYT01	50	3000		24		64
		70ZYT02				27
		70ZYT03				48
		70ZYT04				110
750	360	70SZ01	40	3000		24	24	4
		70SZ02				27	27
		70SZ03				48	48
		70SZ04				110	110

PS series isantya ratio jikelele
Inqanaba 1: 4 , 6
Isibini: 16, 24, 36
Inqanaba 3: 64, 96, 144, 216
Inqanaba 4: 256\384\576\864\1296

90PX series non-standard isantya umlinganiselo
Inqanaba 1: 3
Inqanaba 2: 9 , 12 , 18
Inqanaba 3: 27 , 48 , 54 , 72 , 108
Inqanaba 4: 81 , 162 , 192 , 288 , 324 , 432 , 648 .

110PX uthotho non-standard isantya isantya
Inqanaba 1: 5
Inqanaba lesi-2: 20, 25, 30
Inqanaba 3: 80 , 100 , 120 , 125 , 150 , 180 .
Inqanaba 4: 320 , 400 , 480 , 500 , 600 , 625 , 720 , 750 , 900 , 1080 .

Izinciphisi ezingekho mgangathweni ezifana nomlinganiselo okhethekileyo wesantya, isantya, ubungakanani bofakelo, njl

Umzekelo wokukhetha
Umsebenzisi unokukhetha ngokuchanekileyo amandla kunye nemodeli yokunciphisa ngokwenkqubo yangempela yokusebenza kunye nohlobo lomthwalo ngokubhekiselele kwiziqulatho ezilandelayo.
1.Ngokwe-torque yomthwalo kunye nesantya sokuphuma somnciphisi, amandla afunekayo angabalwa ngolu hlobo lulandelayo: P = T n/kh
Kwifomula: i-P-output power WT - i-torque ye-Nm, khetha i-n-output speed r/min ngokwephepha ledatha yobugcisa.
K- ukulayisha rhoqo 9560 η - ukuhanjiswa ngokufanelekileyo, kukhethwe kwitheyibhile elandelayo

Umlinganiselo woThutho

Umlinganiselo wothumelo(i)	4(6)	16(36)	64(216)	256(1296)
η	0.76	0.72	0.68	0.65

2.Irhuluneli yemoto inokukhethwa ukuba iqonde utshintsho lwesantya esingenanyathelo lesinciphisi ukusuka kwi-O ukuya kwisantya esilinganiselweyo.
3. Ngokwenkqubo yangempela yokusebenza kunye nendalo yomthwalo, i-coefficient yenkonzo inokukhethwa ngokubhekisele kwitafile ye-coefficient table.Emva kokubala, amandla afunekayo okunciphisa angamiselwa, kwaye ngokwesantya esifunekayo sokuphuma, imodeli yokunciphisa ingakhethwa ngokubhekisela kwitheyibhile yedatha yezobugcisa.

Iphepha leSalathisi esiSebenzayo

Ixesha lomsebenzi wemihla ngemihla	Inqanaba Lomthwalo
	Umndilili uzinzile	Udlamko oluphakathi	Impembelelo enkulu
12	1	1.25	1.75
24	1.25	1.50	2

Umzekelo: ukuba umthwalo ulungelelene kwaye uzinzile, amandla afunekayo alinganiswe yi-motor yi-40W, i-voltage elinganisiweyo yi-110V, umlinganiselo wesantya sokuphuma ngu-4, kwaye ixesha lokusebenza ngosuku yi-12h, emva koko i-40W ikhethiwe.Ukuba ubume bomthwalo kukungcangcazela okuphakathi:
Emva koko: a.Jonga kwitheyibhile ye-coefficient yenkonzo ukukhetha uthotho lwenkonzo njenge-1.25.Amandla afunekayo W=40W*1.25=50W
b.Jonga i-data sheet yobugcisa ngokukhetha i-J70SZ54P*4

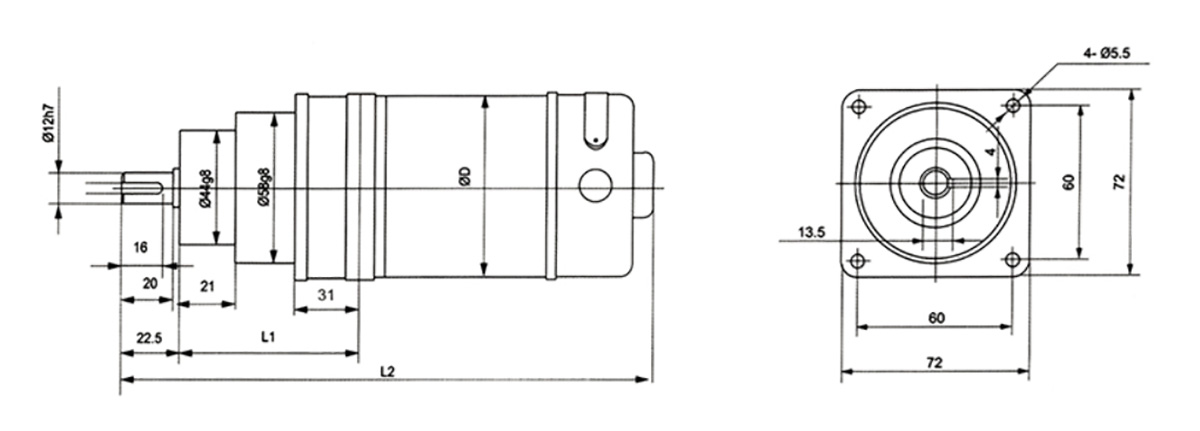

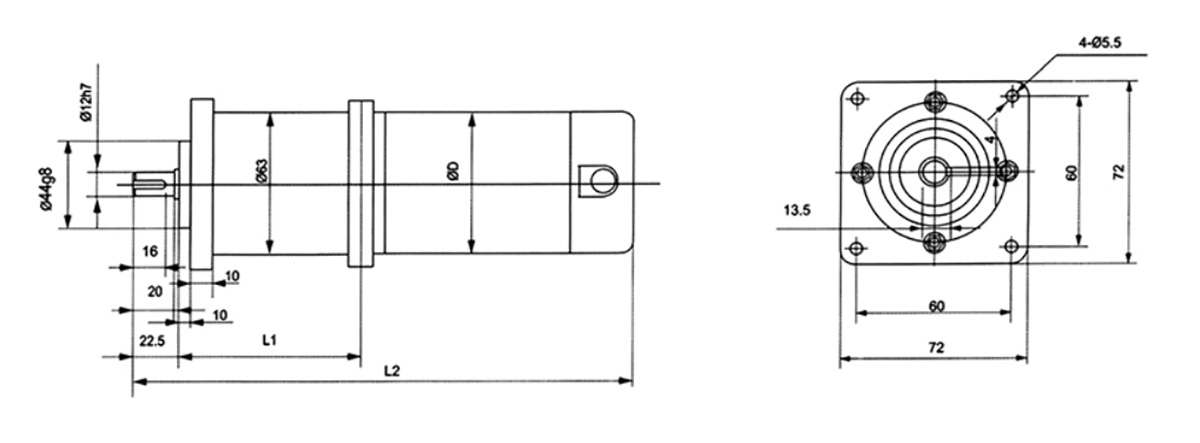

70PX iflenge yangaphambili
