SDJ Series ACIM Controller (3KW)
SDJ series motor controller (3KW) inkcazo yemveliso
Uluhlu lwe-SDJ Umlawuli we-AC ngumqhubi ophuhliselwe izithuthi zombane ze-AC kumbane ophantsi.Njengesixhobo sokuqhuba sokuthembeka okuphezulu kunye ne-torque enkulu ye-asynchronous motor, eyilwe ngendlela yokulawula i-quadrants ye-quadrants, inokulawula isantya semoto kunye ne-torque ngokuchanekileyo.Isetyenziswa kakhulu kwimoto yomkhweli yombane esulungekileyo, imoto ekhwela isantya esezantsi ye-A00, imoto yokubona indawo yombane, isithuthi sombane sokutshayela, isithuthi sombane solungiselelo, njl.
Uluhlu lwe-SDJ umlawuli we-AC wamkela ulawulo lwe-digital drive kunye ne-DSP njengeyona nto ingundoqo, kwaye inqanaba lokukhusela lifikelela kwi-IP67.Umlawuli wamkela i-asynchronous motor enokuthembeka okuphezulu kunye ne-torque ephezulu njengesixhobo sokuqhuba, esineempawu zobukhulu obuncinci, ubunzima obulula, ukuthembeka okuphezulu kunye nokuphendula ngokukhawuleza.Ngomsebenzi wempendulo yamandla ukwandisa i-mileage yokuhamba ngenqanawa;kunye noyilo lokhuseleko oluninzi olunje ngokulinganiselweyo okwangoku, ngaphezulu kwangoku, ngaphezulu kobushushu, i-rotor etshixiwe, isekethe emfutshane, njl.
Iimbonakalo
●Umlawuli wamkela i-DSP yaseJamani, i-digital mainstream drive yamazwe ngamazwe njenge-chip core control chip, enceda ukwakha iqonga elifanelekileyo le-algorithm yokulawula imoto.
●Ngokusebenzisa ityhubhu ye-MOSFET yamandla aphezulu kwisixhobo samandla, inokuqonda uguqulo lwamandla olusebenzayo.
●Ukhuseleko oluninzi lonxibelelwano lwe-CAN kunye nolawulo lwesatifikethi sokhuseleko lwe-lithium ibhetri ye-BMS.
●Ukuxhasa ukukhuselwa kwesiphaluka esifutshane (isigaba - umhlaba, isigaba - isigaba, isigaba - umthombo), ukulayisha ngaphezulu, ubushushu, ukhuseleko lombane.
●Itekhnoloji ethembekileyo neguquguqukayo yebrake yokuvuselela inokuphucula umgama wokuqhuba, ukuhlangabezana neemfuno zabathengi, nakwimo yokuqhuba ngesantya esiphantsi.
●Ukusebenzisa itekhnoloji ye-micro-motion kunye nokwehla kancinci kunye nokubamba itekhnoloji kwithambeka eliphakamileyo, isakhono esinamandla sokunyuka, ukubamba induli okuzinzileyo, ukuqala ngamandla.
●Yamkela i-algorithm egqwesileyo yokuphucula kunye ne-frequency 0 ukuya kwi-300 HZ, ukunciphisa ingxolo kunye ne-vibration amplitude.
●Umsebenzi ogqibeleleyo wokukhusela iziphene, i-buzzer ikhumbuza zonke iintlobo zeempazamo, kukulungiswa okufanelekileyo.
●Yamkela iteknoloji ye-CAN-bus ukunciphisa i-wiring edibeneyo, iparameter inokulungiswa kwaye icwangciswe kwi-intanethi.
●Yamkela uyilo oluhambelanayo ukwenza umthamo ube mncinci kwaye ubunzima bube khaphukhaphu.Umsebenzi wokufunda ngokwakho, yenza lula ukufakela kunye namanyathelo okulungisa.
Kwiinkampani zeemoto: ukulayishwa lula, ngaphandle kokukhathazeka emva kokuthengisa
●Ukuziqhelanisa okunamandla kunye nomsebenzi wokuzifundela
●Izixhobo zefektri ezidumileyo, umgangatho othembekileyo
●Umsebenzi we-alarm yokuzibona impazamo
Kubasebenzisi: amava awomeleleyo, ukugabadela okuziyo
●I-drive igudile, isiqalo sinamandla, kwaye ukukhawuleza kunamandla
●I-torque enkulu, amandla okunyuka anamandla, i-anti-slip kwi-slope
●Ingxelo yamandla, ukwandisa uhambo lokuhamba, ukwandisa ubomi bebhetri
Imveliso: uyilo lobungcali, ukuqwalaselwa
●Ukusebenza okuzinzileyo
●Ukhuseleko olugqibeleleyo kunye noyilo lokhuseleko
Inkcazo
| Imodeli yoMlawuli | SDJ-7.5KW | |||
| Umbane | Igalelo (DC/V) | 72V | 96V | 144 V |
| Ubuninzi bemveliso yangoku (AC/A) | 400A | 320A | 250A | |
| Ireyithiwe imveliso yangoku (AC/A) | 115A | 78A | 52A | |
| Ubukhulu bemveliso yamandla (KW) | 30 | 30 | 30 | |
| Ubuninzi bemveliso yefrikhwensi(Hz) | 300 | 300 | 300 | |
| Uluhlu lweqondo lobushushu lendawo yokusebenza(℃) | -30°C--+55°C | |||
| Uluhlu lweqondo lobushushu lokusingqongileyo (℃) | -40°C---+70°C | |||
| IP iklasi | IP67 | |||
| Ukusebenza kwe-insulated | 72V/96V Igalelo & imveliso kwiqokobhe DC1000V, evuzayo yangoku 0.05mA, insulated ukumelana 20MΩ | |||
| 144V Ungeniso kunye nemveliso kwiqokobhe DC2100V, evuzayo yangoku 2.1mA, insulated ukumelana 1MΩ | ||||
| Ukusebenza komlawuli | 0.98 | |||
| Indlela yokupholisa | Ukupholisa kwendalo/Ukupholisa umoya | |||
| Indlela yokulawula | Ulawulo lweVector | |||
| Uhlobo lweMoto | Injini yeAsynchronous | |||
| Umgangatho wokungcangcazela | GB/T2423 | |||
| Indlela yonxibelelwano | INAKO | |||
| Ubunzima (Kg) | 4kg | |||

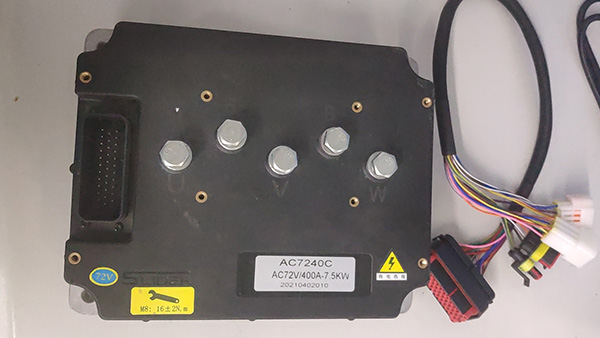

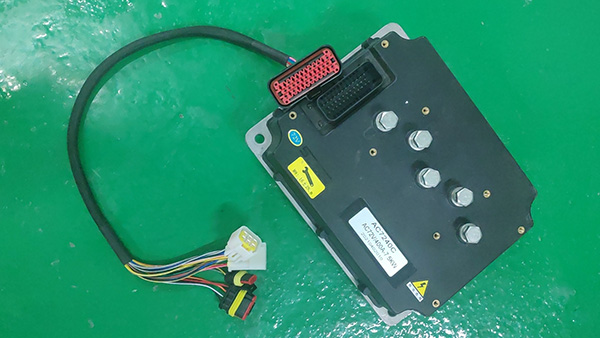

Ifoto yeMveliso

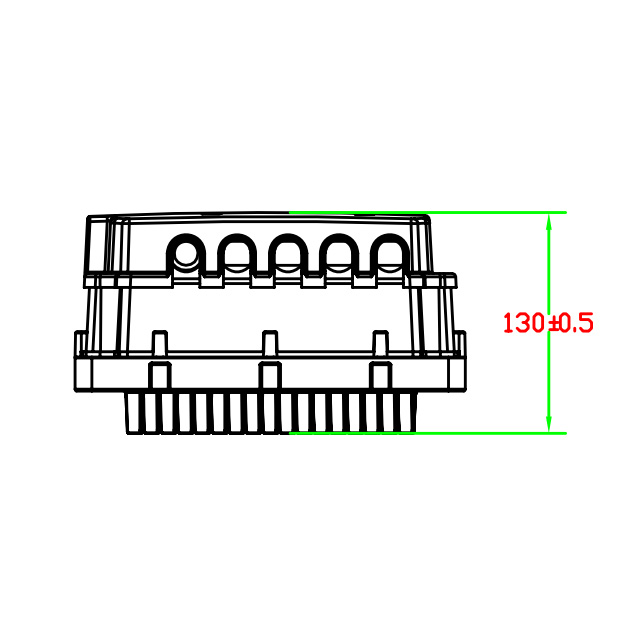

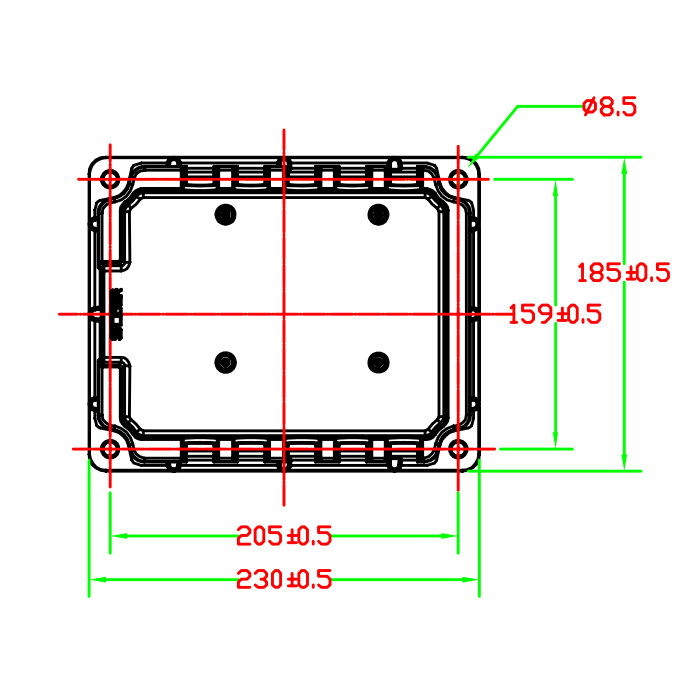

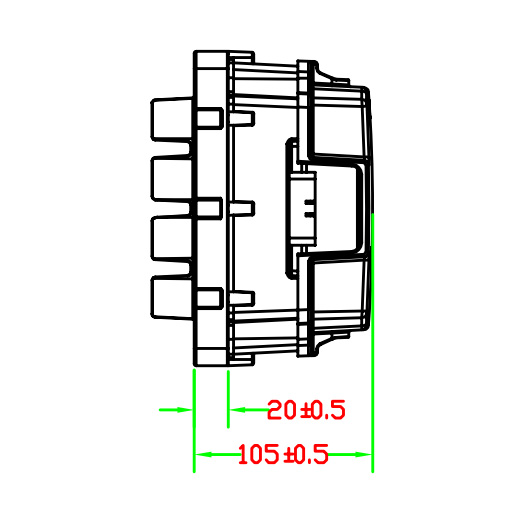

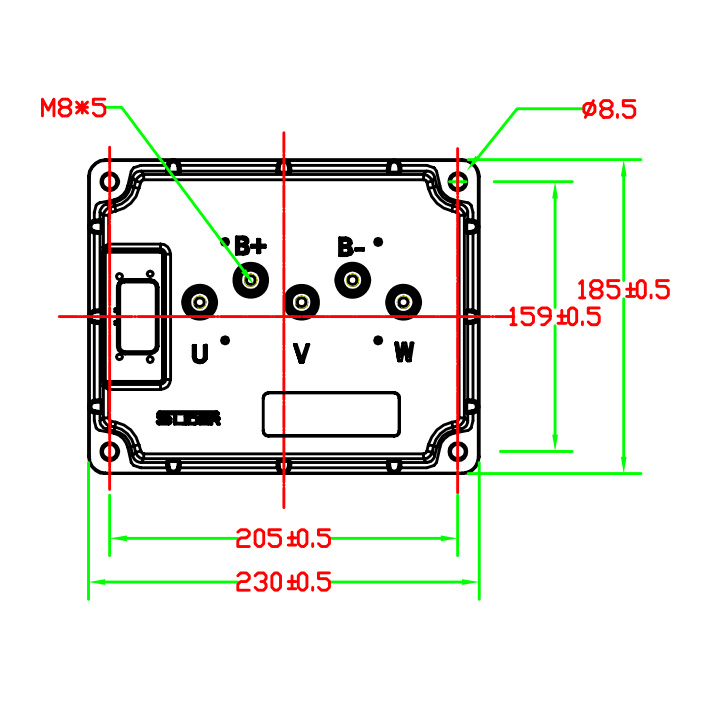

Imizobo yoMda
